Attributes
| Part Number | 0405-20-20 |
|---|---|
| Is Series Page | 0 |
Description

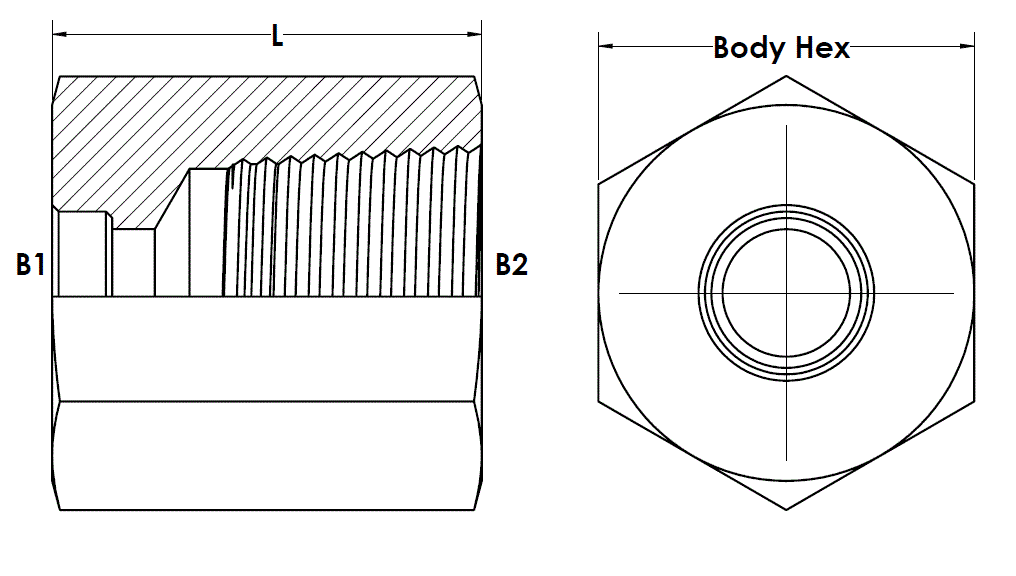

Steel, SAE J514 Tube Bore Female Connector, 1-1/4" Bore x 1-1/4" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Bore","Side 1 Tube OD":"1-1/4\"","Side 1 Standard":"Not Defined","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1-1/4\"","Side 2 Thread Type":"1-1/4-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Female Connector","Primary Material":"Steel","Material Grade":"1018/1020","Plating":"Unplated"} |
| Dimensions | {"Weight":"0.77 lb"} |
| Performance Specifications | {"Working Pressure":"2500 psi","Temperature Range":"-65°F to 500°F","Burst Pressure":"10000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF1026-2020S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Tube Bore x Female Pipe |
| Technical Series Configuration | SAE J514 Tube Bore x SAE J476 Female NPTF Connector |
| Side 1 Connection Type | Bore |
| Side 2 Connection Type | Female NPTF |
| Shape | Straight |
| Product Type | Fittings |
