Attributes
| Part Number | 6574-16-16-04 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 37° Flare Swivel Adapter NPT Diagnostic Port, 1" Male JIC x 1" Female JIC Swivel x 1/4" FNPT Diagnostic Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Female JIC Swivel","Side 2 Tube OD":"1\"","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J514 - Class 2B Thread","Side 2 Role":"Line Connection","Side 3 Connection Type":"Female NPTF","Side 3 Pipe Size":"1/4\"","Side 3 Thread Type":"1/4-18 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Diagnostic Tee","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"1.03 lb"} |
| Performance Specifications | {"Working Pressure":"1800 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"7200 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIC x Female JIC Swivel x Female Pipe |
| Technical Series Configuration | SAE J514 Male JIC x Female JIC Swivel Tube x SAE J476 Female NPTF Diagnostic Tee |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Female JIC Swivel |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

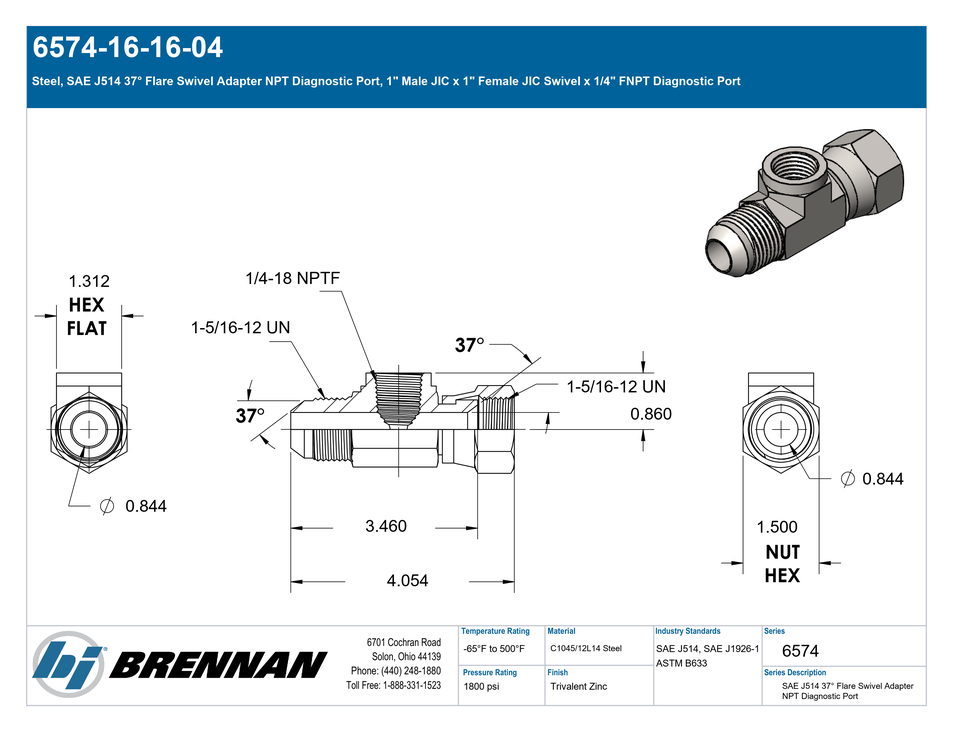

Specification Sheet
