Attributes
| Part Number | D0306-M22X1.5 |
|---|---|
| Is Series Page | 0 |
Description

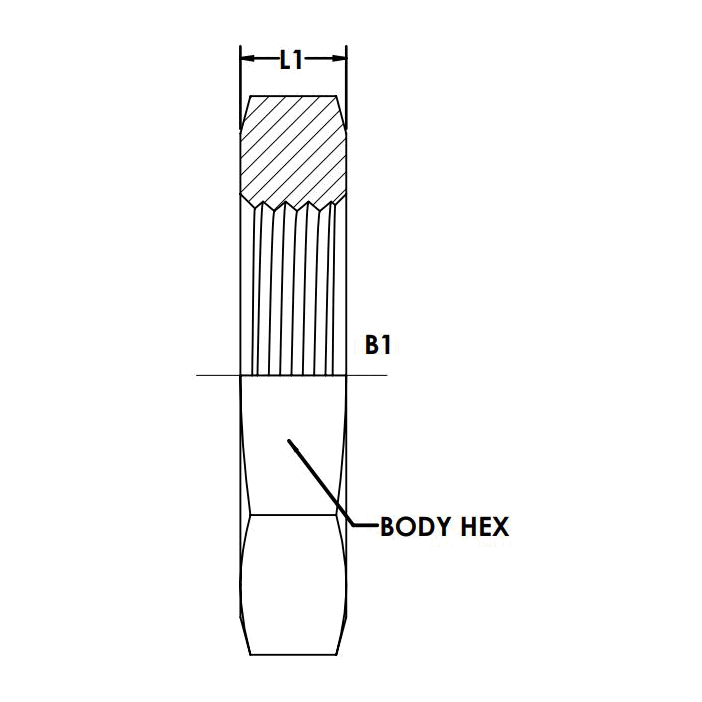

Steel, DIN 2353 Bulkhead Locknut, L15/S14 (M22X1.5) Thread
Specifications
| Connection Details | {"Thread Type":"Female Metric","Standard":"DIN 80705","Connection Standard":"DIN 80705"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Lock Nut","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel"} |
| Dimensions | {"Hex/Wrench":"30mm","Weight":"0.04 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227"} |
| Cross References | {"Parker Hose Part Number":"GM15LA3CX","Parker TFD Part Number":"GM15LCFX"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube Bulkhead Lock Nut |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube Bulkhead Lock Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
