Attributes
| Part Number | 7040-06-06-B |
|---|---|
| Is Series Page | 0 |
Description

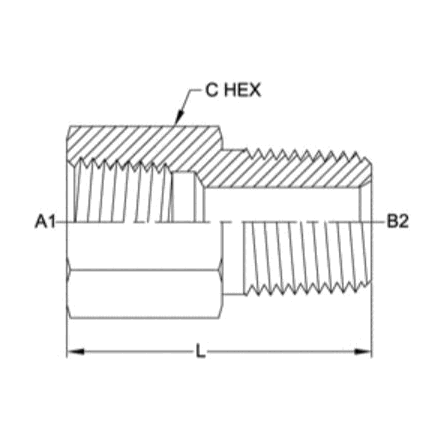

Brass, SAE J476 Rigid Pipe Male BSPT Adapter, 3/8" Female NPTF x 3/8" Male BSPT 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Female NPTF","Side 1 Pipe Size":"3/8\"","Side 1 Thread Type":"3/8-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Male BSPT 30°","Side 2 Pipe Size":"3/8\"","Side 2 Thread Type":"R - 3/8-19","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Brass","Material Grade":"C36000, CA37000, CA34500","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Hex/Wrench":"0.875","Weight":"0.14 lb"} |
| Performance Specifications | {"Working Pressure":"3300 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"13200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"3/8X3/8F3HGB"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female Pipe x Male BSPT |
| Technical Series Configuration | SAE J476 Female NPTF Pipe x ISO 7-1 Male BSPT Pipe Adapter |
| Side 1 Connection Type | Female NPTF |
| Side 2 Connection Type | Male BSPT 30° |
| Shape | Straight |
| Product Type | Fittings |
