Attributes
| Part Number | 7223-02-02-SS |
|---|---|
| Is Series Page | 0 |
Description

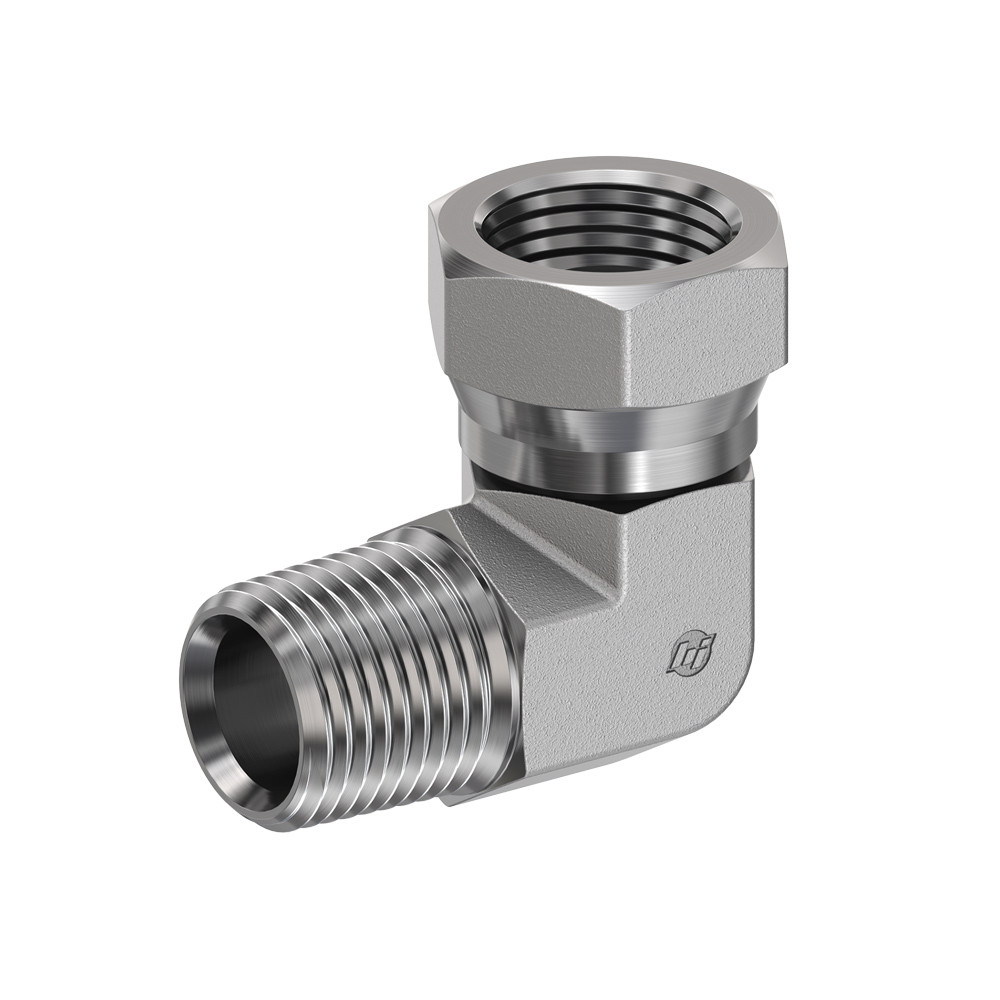

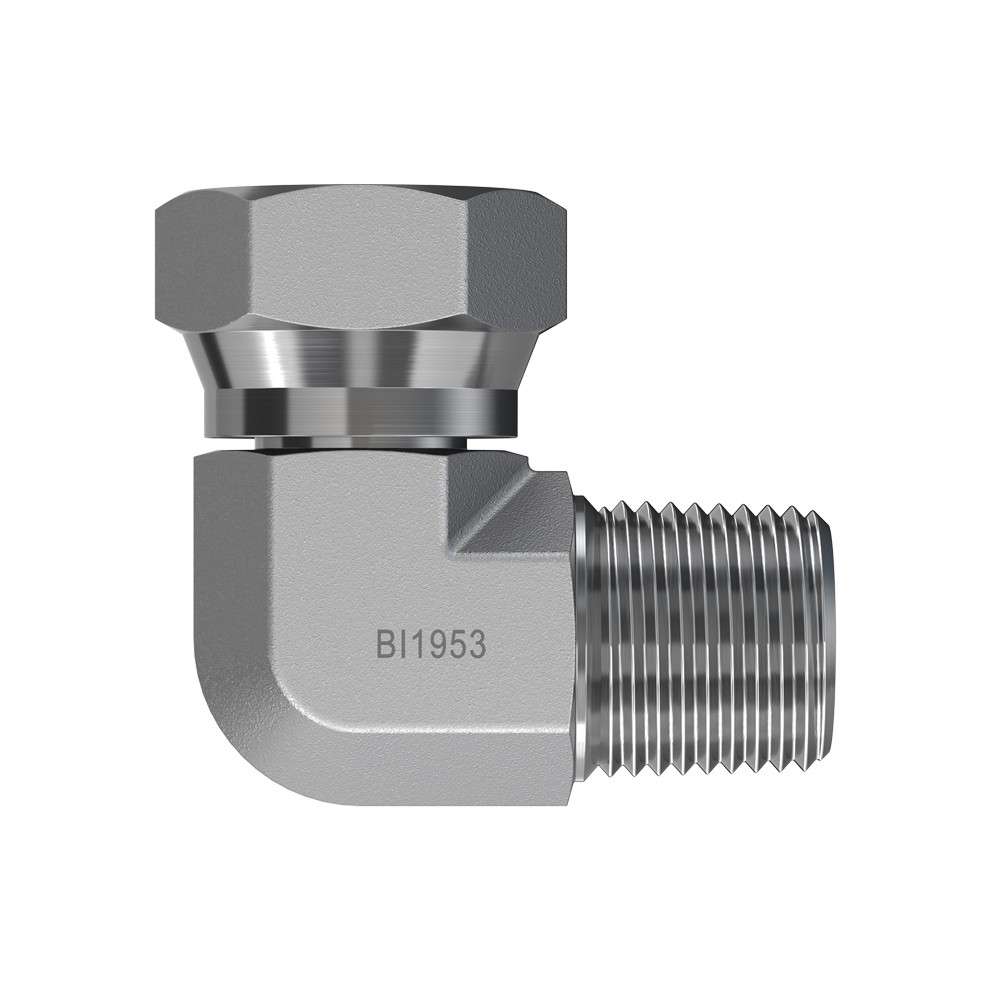

Stainless Steel, SAE J476 Pipe BSPP Swivel 90° Elbow, 1/8" Male NPTF 30° x 1/8-28 Female BSPP Swivel
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/8\"","Side 1 Thread Type":"1/8-27 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female BSPP Swivel","Side 2 Thread Type":"G - 1/8-28","Side 2 Standard":"ISO 8434-6","Side 2 Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Swivel Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |

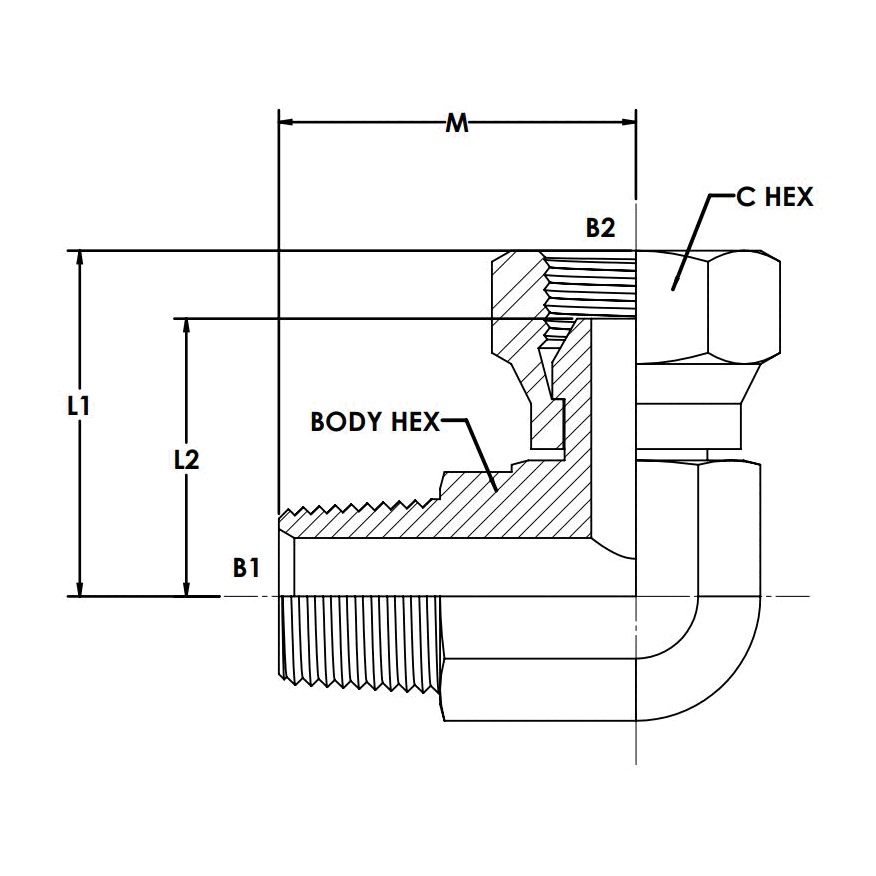

| Dimensions | {"Hex/Wrench":"0.438","Weight":"0.07 lb"} |
| Performance Specifications | {"Working Pressure":"5100 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"20400 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Female BSPP Swivel |
| Technical Series Configuration | SAE J476 Male NPTF Pipe x ISO 8434-6 Female BSPP Swivel Line 90° Elbow |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female BSPP Swivel |
| Shape | 90° Elbow |
| Product Type | Fittings |
