Attributes
| Part Number | 0403-32-32 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J514 Tube Bore Male Flared Connector, 2" Bore x 2" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Bore","Side 1 Tube OD":"2\"","Side 1 Standard":"Not Defined","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"2\"","Side 2 Thread Type":"2-1/2-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"1018/1020","Plating":"Unplated"} |
| Dimensions | {"Weight":"1.42 lb"} |
| Performance Specifications | {"Working Pressure":"2000 psi","Temperature Range":"-65°F to 500°F","Burst Pressure":"8000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"73014-32S","Parker TFD Part Number":"32 XHB3-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Tube Bore x Male JIC |
| Technical Series Configuration | SAE J514 Tube Bore x Male JIC Tube Connector |
| Side 1 Connection Type | Bore |
| Side 2 Connection Type | Male JIC |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

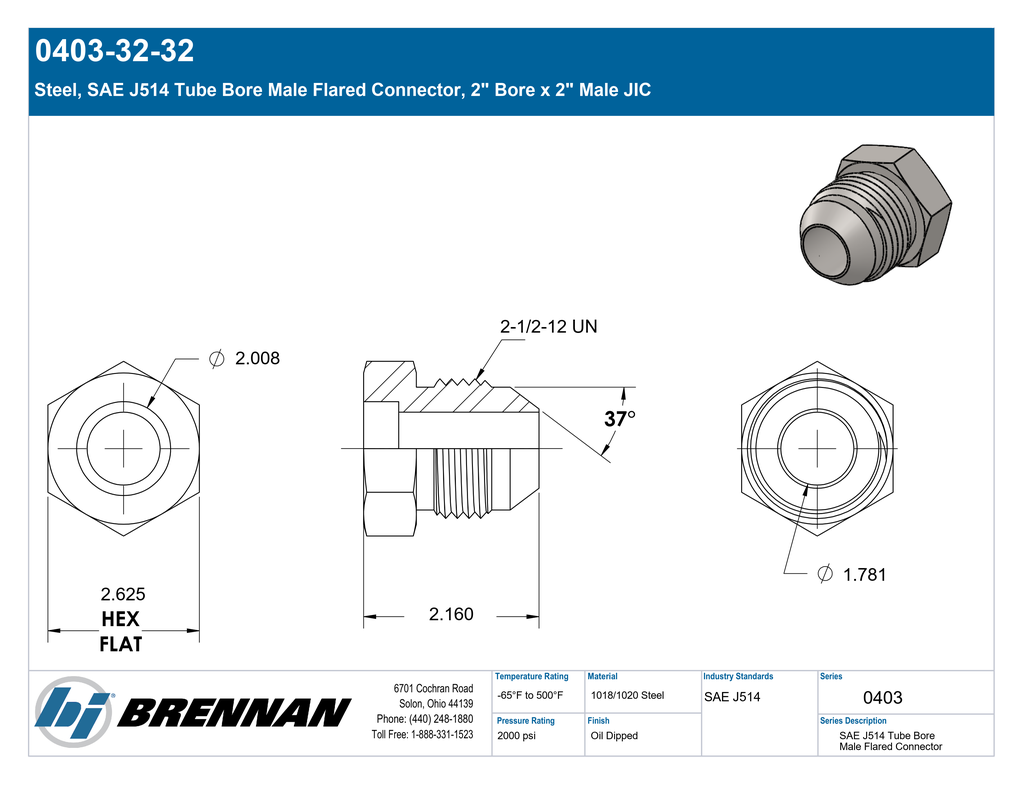

Specification Sheet
Open PDF
