Attributes
| Part Number | 0306-14-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J514 37° Flare Bulkhead Lock Nut, 7/8" Male JIC
Specifications
| Connection Details | {"Connection Type":"JIC Locknut","Tube OD":"7/8\"","Thread Type":"1-3/16-12 UN","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Lock Nut","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.12 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F"} |
| Cross References | {"Aeroquip Part Number":"259-210212-14","Parker TFD Part Number":"14 WLN-SS","SAE J514 Part Number":"SAE J514 14 070118S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | JIC Bulkhead Lock Nut |
| Technical Series Configuration | SAE J514 Female UN/UNF Bulkhead Lock Nut |
| Side 1 Connection Type | JIC Locknut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
PDF Documents

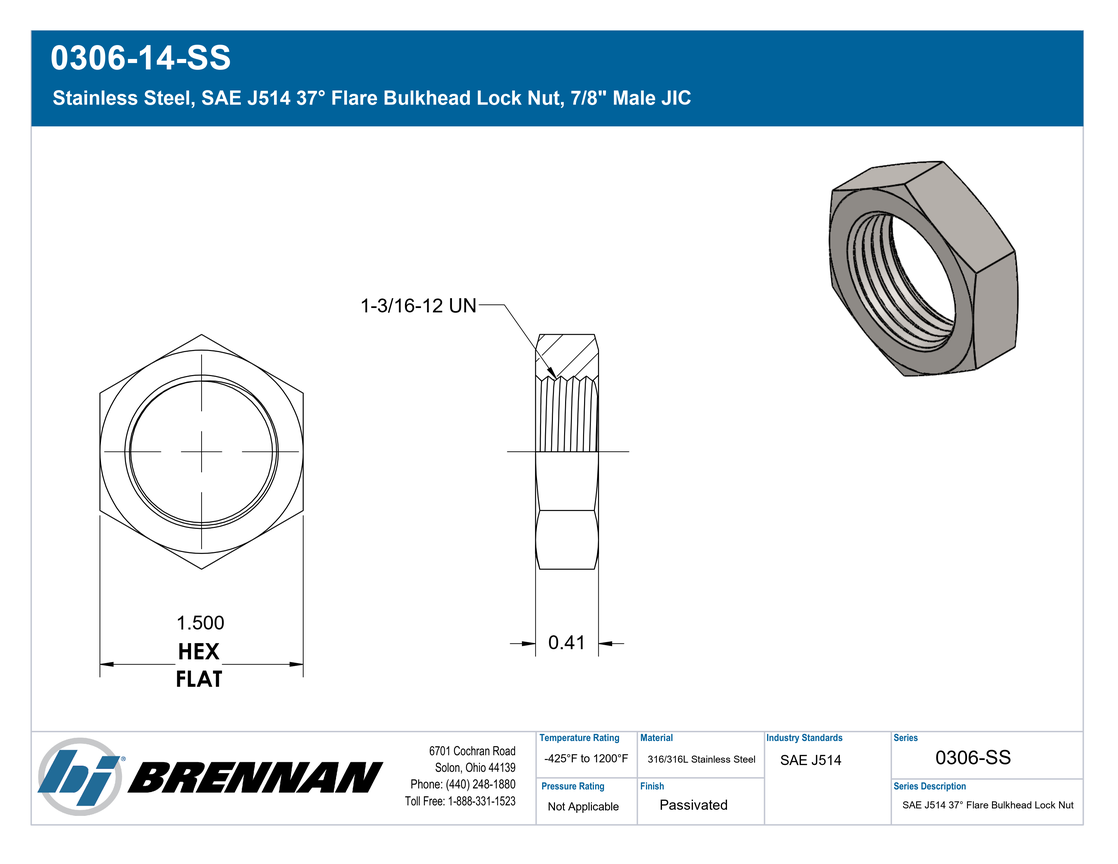

Specification Sheet
Open PDF
