Attributes
| Part Number | D8601-S08-S08-14-SS |
|---|---|
| Is Series Page | 0 |
Description

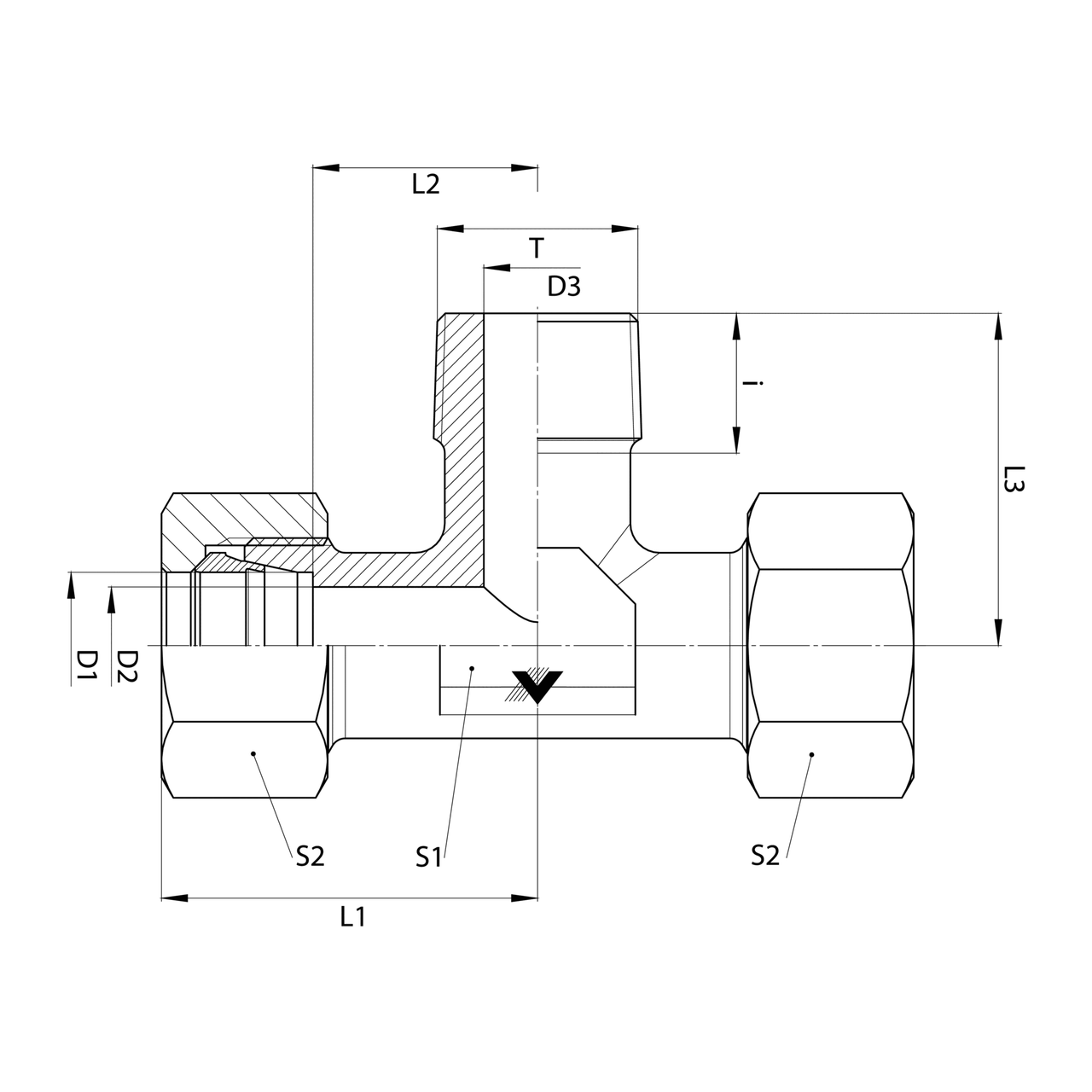

Stainless Steel, DIN 2353 Male Branch Tee, Heavy 8mm Tube OD x Heavy 8mm Tube OD x 14mm Metric Taper
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"8mm","Side 1 Thread Type":"M16X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Heavy","Side 2 Connection Type":"DIN Tube","Side 2 Tube OD":"8mm","Side 2 Thread Type":"M16X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection","Side 2 DIN Pressure Series":"Heavy","Side 3 Connection Type":"Male Metric Taper","Side 3 Thread Type":"M14X1.5","Side 3 Standard":"DIN 3852-1, DIN 3852-2","Side 3 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Branch Tee","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Hex/Wrench":"14mm","Weight":"0.27 lb"} |
| Performance Specifications | {"Temperature Range":"-425°F to 1200°F","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"TE08SM71"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube x DIN Tube x Male Metric Taper |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x Flareless Tube x DIN 3852-1 Form C Male Metric Taper Branch Tee |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | DIN Tube |
| Shape | Tee |
| Product Type | Fittings |
