Attributes
| Part Number | 2702-LN-24-24-SS |
|---|---|
| Is Series Page | 0 |
Description

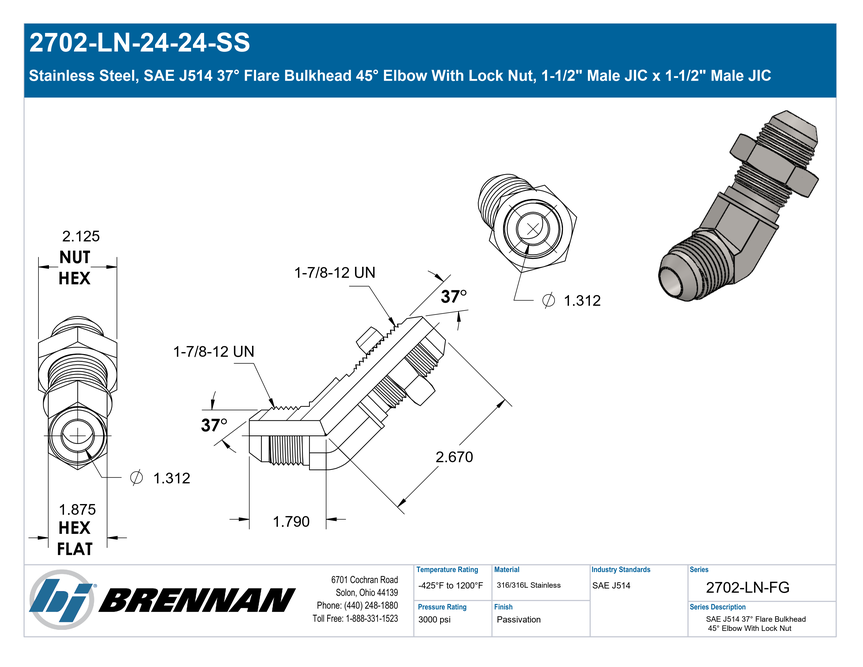

Stainless Steel, SAE J514 37° Flare Bulkhead 45° Elbow With Lock Nut, 1-1/2" Male JIC x 1-1/2" Male JIC
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIC","Side 1 Tube OD":"1-1/2\"","Side 1 Thread Type":"1-7/8-12 UN","Side 1 Standard":"SAE J514 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 2 Connection Type":"Male JIC","Side 2 Tube OD":"1-1/2\"","Side 2 Thread Type":"1-7/8-12 UN","Side 2 Standard":"SAE J514 - Class 2A Thread","Side 2 Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Bulkhead Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Feature":"Bulkhead"} |
| Dimensions | {"Weight":"1.79 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC x Male JIC Bulkhead, With Lock Nut |
| Technical Series Configuration | SAE J514 Male JIC Tube x Male JIC Tube Bulkhead 45° Elbow With Lock Nut |
| Side 1 Connection Type | Male JIC |
| Side 2 Connection Type | Male JIC |
| Shape | 45° Elbow |
| Product Type | Fittings |
