Attributes
| Part Number | 6806-06-04-NWO-FG-VITON |
|---|---|
| Is Series Page | 0 |
Description

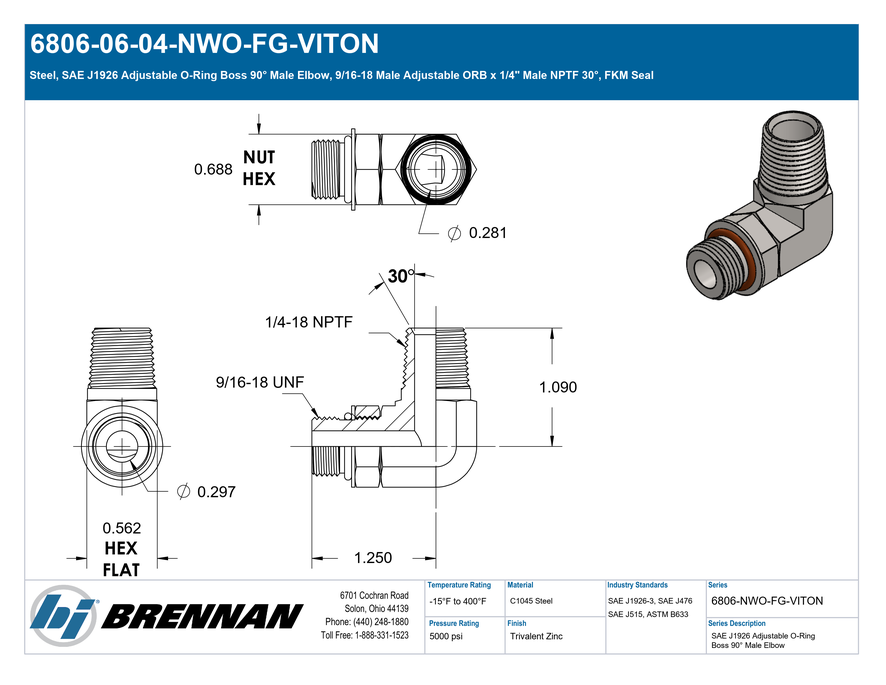

Steel, SAE J1926 Adjustable O-Ring Boss 90° Male Elbow, 9/16-18 Male Adjustable ORB x 1/4" Male NPTF 30°, FKM Seal
Specifications
| Connection Details | {"Side 1 Connection Type":"Male Adjustable ORB","Side 1 Thread Type":"9/16-18 UNF","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 1 Replacement Seal":"4001-06","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Adjustable Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)"} |
| Dimensions | {"Weight":"0.14 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-15°F to 400°F","Temperature Notes":"Temperature limited by FKM Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Adjustable ORB x Male Pipe |
| Technical Series Configuration | SAE J1926-3 Male Adjustable O-Ring Boss x SAE J476 Male NPTF 90° Elbow |
| Side 1 Connection Type | Male Adjustable ORB |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | 90° Elbow |
| Product Type | Fittings |
