Attributes
| Part Number | 7022-16-12-ORR |
|---|---|
| Is Series Page | 0 |
Description

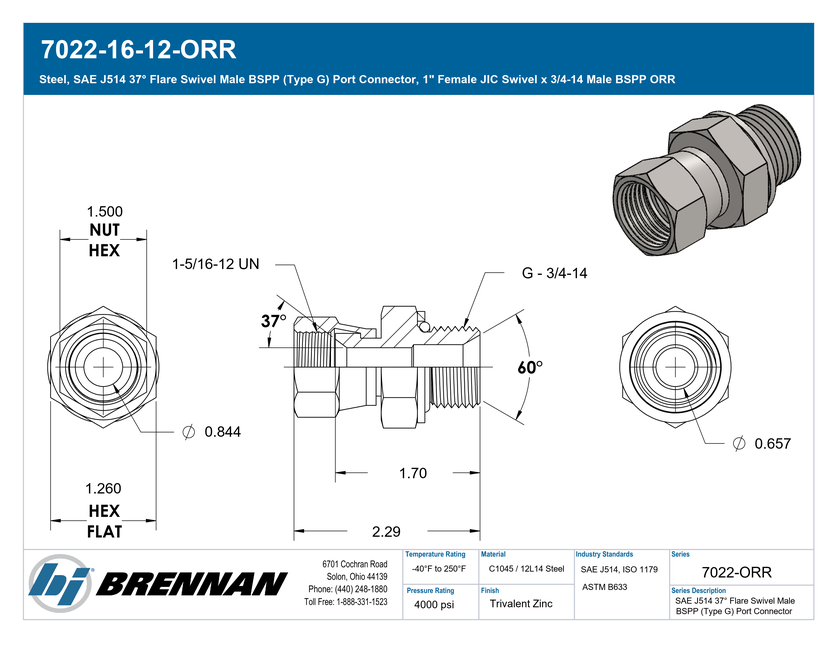

Steel, SAE J514 37° Flare Swivel Male BSPP (Type G) Port Connector, 1" Female JIC Swivel x 3/4-14 Male BSPP ORR
Specifications
| Connection Details | {"Side 1 Connection Type":"Female JIC Swivel","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514 - Class 2B Thread","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male BSPP ORR","Side 2 Thread Type":"G - 3/4-14","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"9901-12","Side 2 Replacement Washer":"9200-12"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"1.260","Weight":"0.23 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"16-12F64OMXS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female JIC Swivel x Male BSPP ORR |
| Technical Series Configuration | SAE J514 Female JIC Swivel Tube x ISO 1179 Male BSPP (Type G) ORR Port Connector |
| Side 1 Connection Type | Female JIC Swivel |
| Side 2 Connection Type | Male BSPP ORR |
| Shape | Straight |
| Product Type | Fittings |
