Attributes
| Part Number | 0318-08-B |
|---|---|
| Is Series Page | 0 |
Description

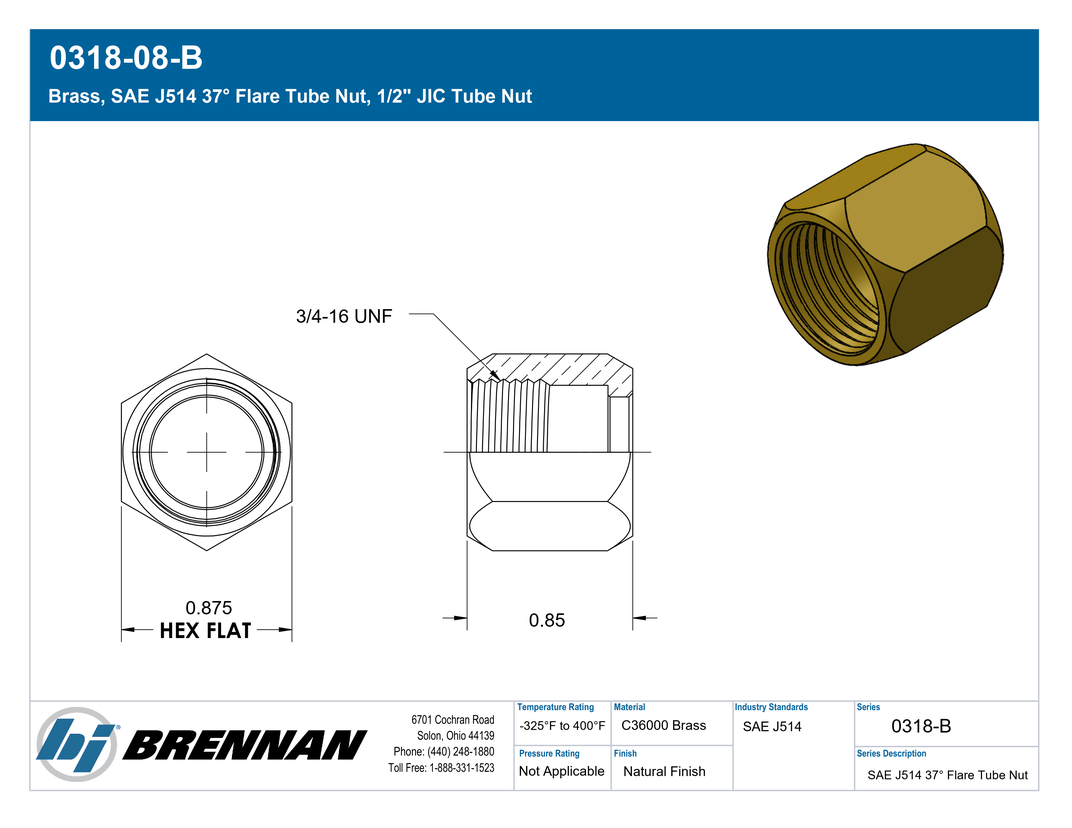

Brass, SAE J514 37° Flare Tube Nut, 1/2" JIC Tube Nut
Specifications
| Connection Details | {"Connection Type":"JIC Tube Nut","Tube OD":"1/2\"","Thread Type":"3/4-16 UNF","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Nut","Shape Type":"Tube Nut","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.08 lb"} |
| Performance Specifications | {"Temperature Range":"-325°F to 400°F"} |
| Cross References | {"Aeroquip Part Number":"1290-8B","Parker Hose Part Number":"06B-8B","Parker TFD Part Number":"8 BTX-B","SAE J514 Part Number":"SAE J514 8 070110B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | JIC Tube Nut |
| Technical Series Configuration | SAE J514 Female UN/UNF Tube Nut |
| Side 1 Connection Type | JIC Tube Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
