Attributes
| Part Number | FS0319-20 |
|---|---|
| Is Series Page | 0 |
Description

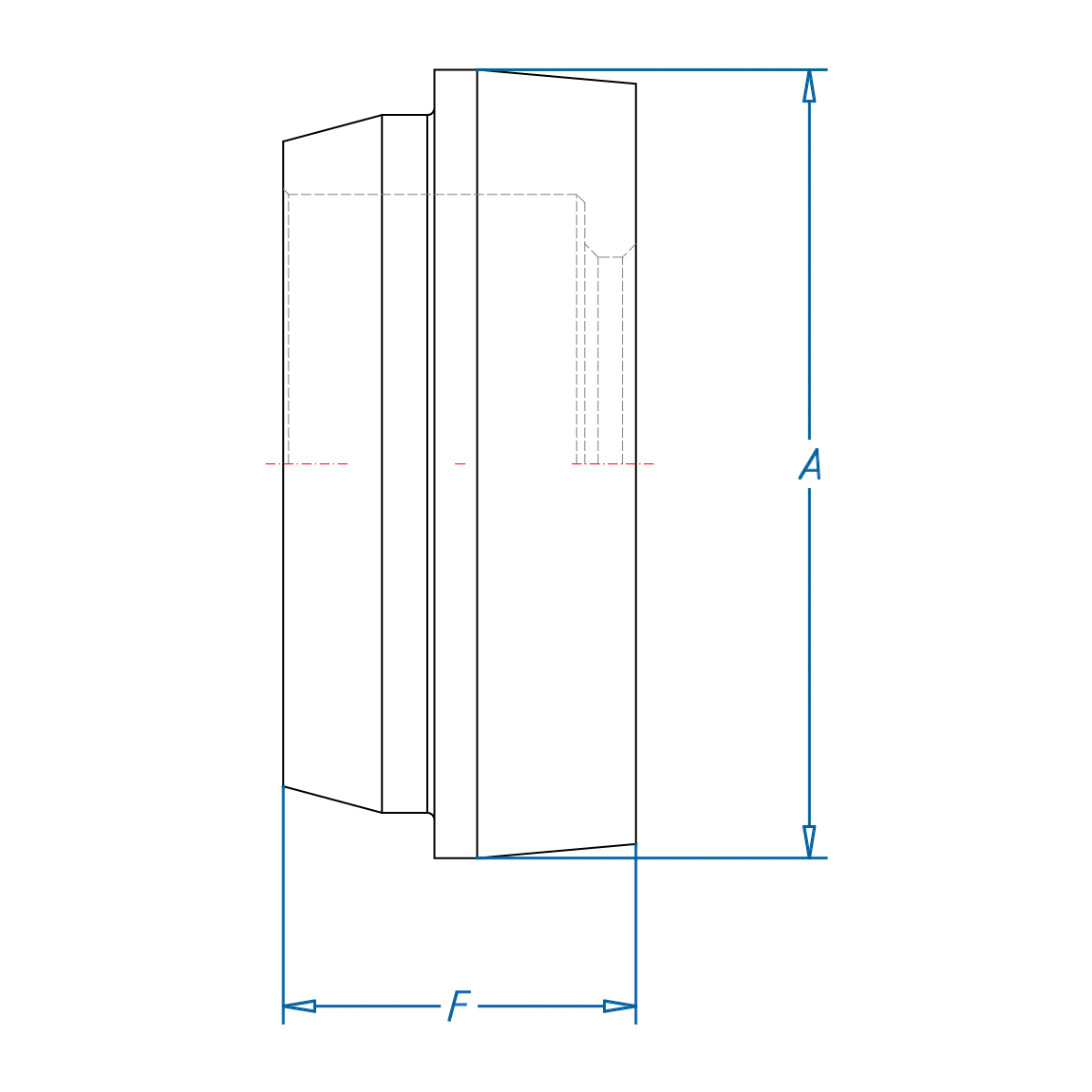

Steel, SAE J1453 O-Ring Face Seal Braze Sleeve, 1-1/4" ORFS Tube Sleeve
Specifications
| Connection Details | {"Connection Type":"ORFS Tube Sleeve","Tube OD":"1-1/4\"","Standard":"SAE J1453","Connection Standard":"SAE J1453","Role":"Tube Connection","Connection Role":"Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Sleeve","Shape Type":"Sleeve","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.09 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F"} |
| Cross References | {"Aeroquip Part Number":"FC1229-2020S","Parker TFD Part Number":"20 TL-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | ORFS Braze Sleeve |
| Technical Series Configuration | SAE J1453 ORFS Tube Braze Sleeve |
| Side 1 Connection Type | ORFS Tube Sleeve |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
