Attributes
| Part Number | D8501-L06-10-SS |
|---|---|
| Is Series Page | 0 |
Description

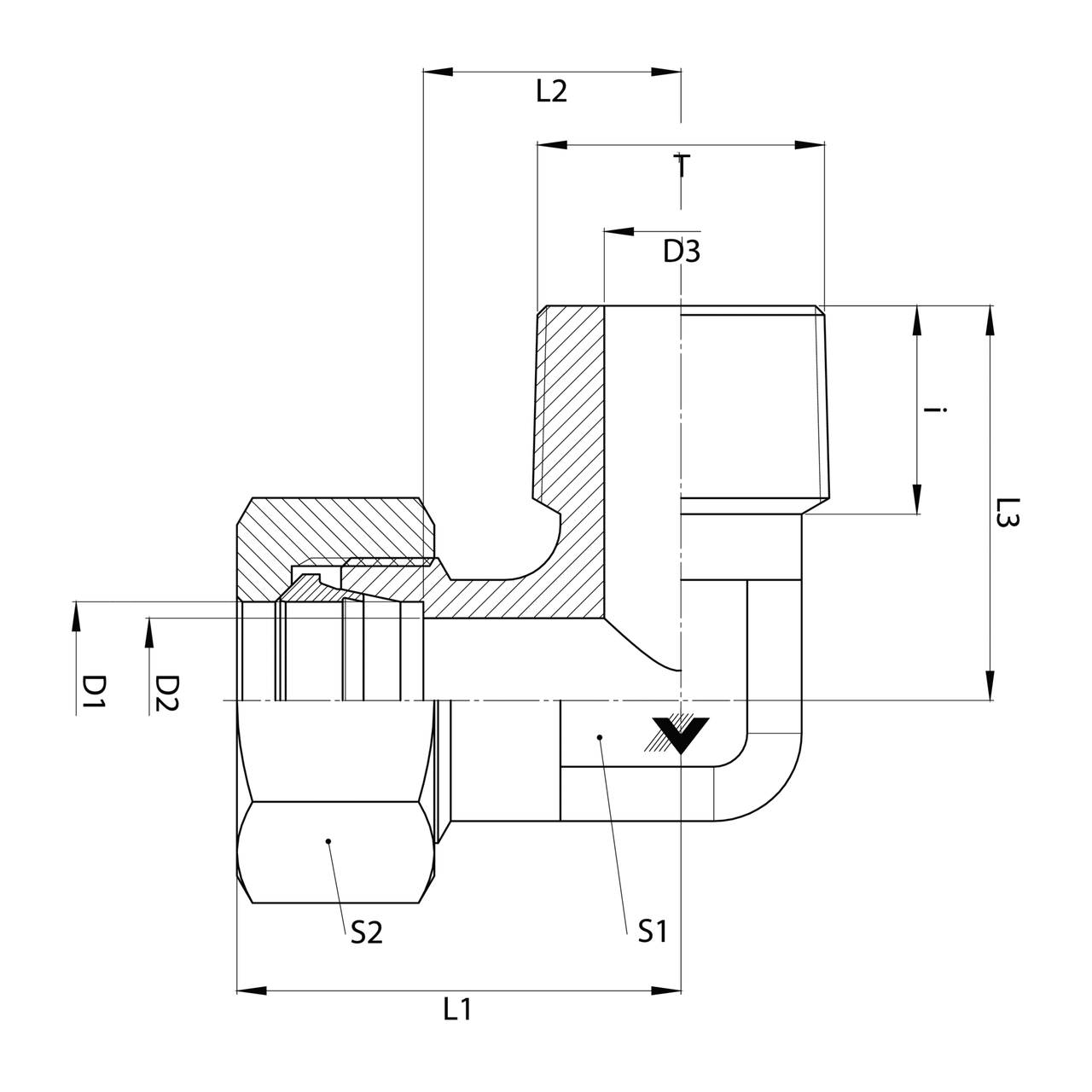

Stainless Steel, DIN 2353 90° Male Elbow, Light 6mm Tube OD x 10mm Metric Taper
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"6mm","Side 1 Thread Type":"M12X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Light","Side 2 Connection Type":"Male Metric Taper","Side 2 Thread Type":"M10X1.0","Side 2 Standard":"DIN3852-1, DIN3852-2","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Elbow","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Hex/Wrench":"12mm","Weight":"0.08 lb"} |
| Performance Specifications | {"Working Pressure":"4569 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"18276 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"WE06LM71"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube x Male Metric Taper |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x DIN 3852-1 Form C Male Metric Taper 90° Elbow |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | Male Metric Taper |
| Shape | 90° Elbow |
| Product Type | Fittings |
