Attributes
| Part Number | 8084-06-06-O |
|---|---|
| Is Series Page | 0 |
Description

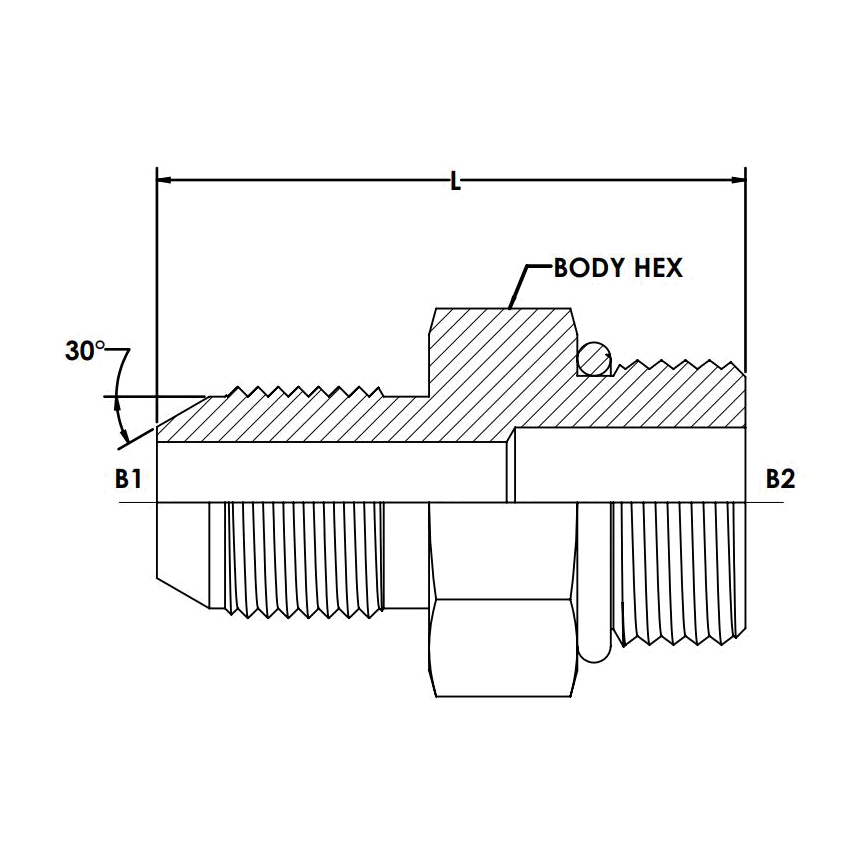

Steel, JIS B0202 Flare Male O-ring Boss Port Connector, 3/8-19 Male JIS x 9/16-18 Male ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male JIS","Side 1 Thread Type":"G - 3/8-19","Side 1 Standard":"JIS B 0202","Side 1 Role":"Line Connection","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"9/16-18 UNF","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-06"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.669","Weight":"0.09 lb"} |
| Performance Specifications | {"Working Pressure":"5000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male JIS x Male O-Ring Boss |
| Technical Series Configuration | JIS B 0202 Male JIS Tube x SAE J1926 Male O-Ring Boss Port Connector |
| Side 1 Connection Type | Male JIS |
| Side 2 Connection Type | Male ORB |
| Shape | Straight |
| Product Type | Fittings |
