Attributes
| Part Number | 5655-20-16-08-08-FG |
|---|---|
| Is Series Page | 0 |
Description

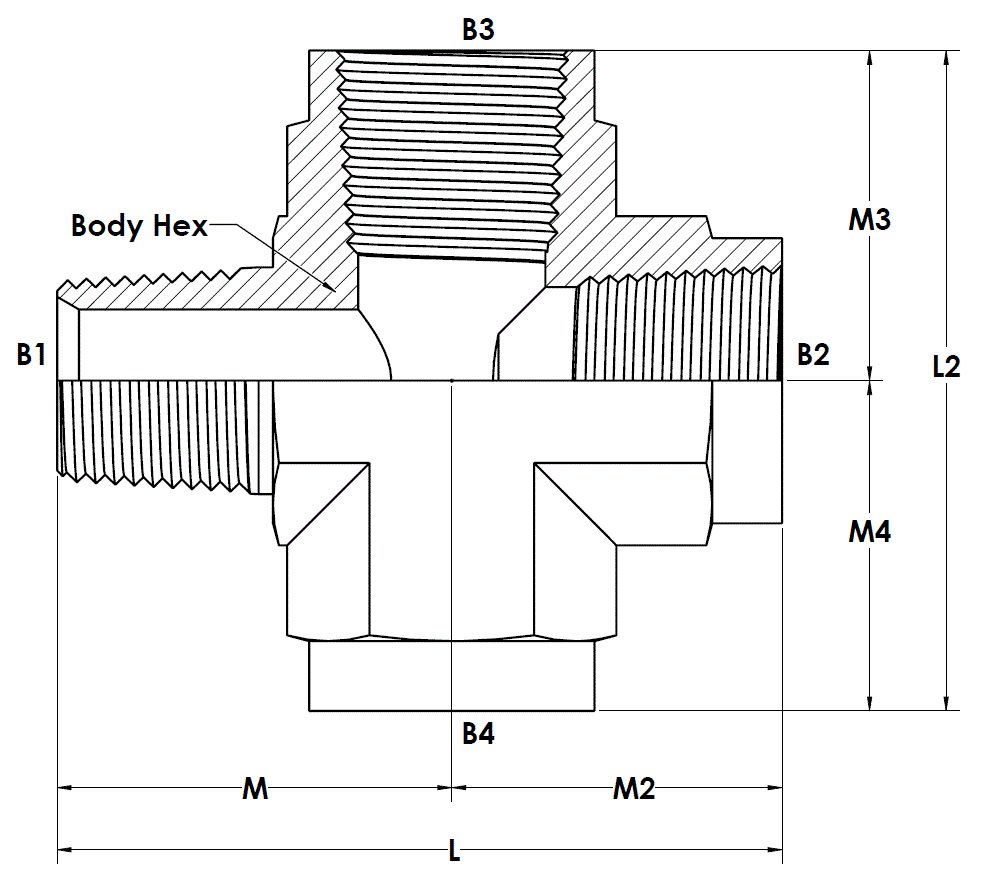

Steel, SAE J514 Pipe Male Run Cross, 1-1/4" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1-1/4\"","Side 1 Thread Type":"1-1/4-11-1/2 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection","Side 3 Connection Type":"Female NPTF","Side 3 Pipe Size":"1/2\"","Side 3 Thread Type":"1/2-14 NPTF","Side 3 Standard":"SAE J476","Side 3 Role":"Pipe Connection","Side 4 Connection Type":"Female NPTF","Side 4 Pipe Size":"1/2\"","Side 4 Thread Type":"1/2-14 NPTF","Side 4 Standard":"SAE J476","Side 4 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cross","Shape Type":"Run Cross","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.48 lb"} |
| Performance Specifications | {"Working Pressure":"1500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"6000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"208007-20-16S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male Pipe x Female Pipe x Female Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPTF x Female NPTF x Female NPTF Run Cross |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female NPTF |
| Shape | Cross |
| Product Type | Fittings |
PDF Documents
No PDF documents.
