Attributes
| Part Number | FS7202-16-12-NWO-FG |
|---|---|
| Is Series Page | 0 |
Description

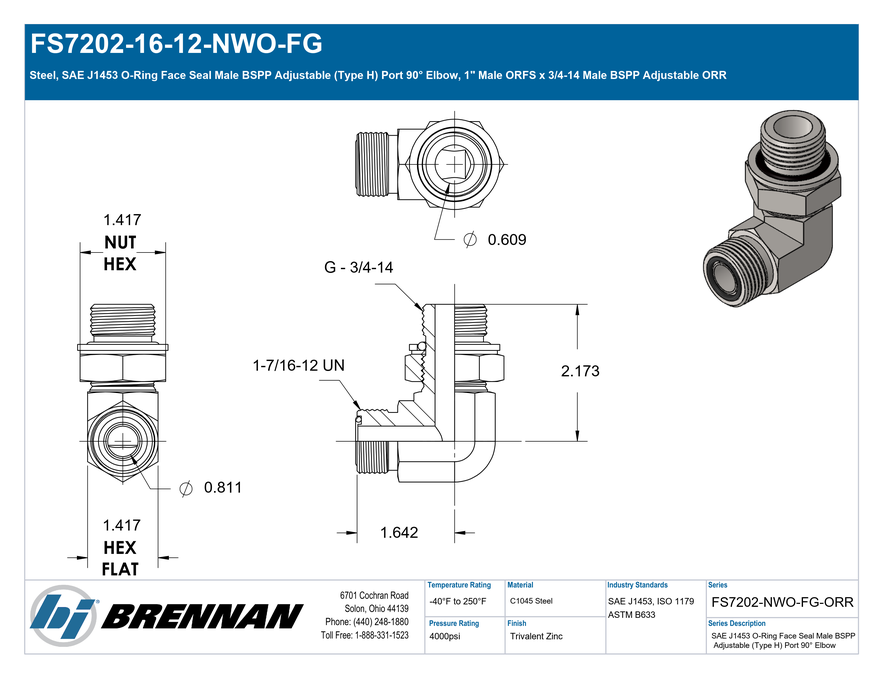

Steel, SAE J1453 O-Ring Face Seal Male BSPP Adjustable (Type H) Port 90° Elbow, 1" Male ORFS x 3/4-14 Male BSPP Adjustable ORR
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-7/16-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-16","Side 2 Connection Type":"Male BSPP Adjustable ORR","Side 2 Thread Type":"G - 3/4-14","Side 2 Standard":"ISO 1179","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"9901-12","Side 2 Replacement Washer":"9200-12"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Adjustable Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"1.417","Weight":"1.20 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF2484T-1612S","Parker TFD Part Number":"16-12C4OMLOS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS x Male BSPP Adjustable ORR |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x ISO 1179 Male BSPP Adjustable ORR Port 90° Elbow |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Male BSPP Adjustable ORR |
| Shape | 90° Elbow |
| Product Type | Fittings |
