Attributes
| Part Number | 1933-64-64 |
|---|---|
| Is Series Page | 0 |
Description

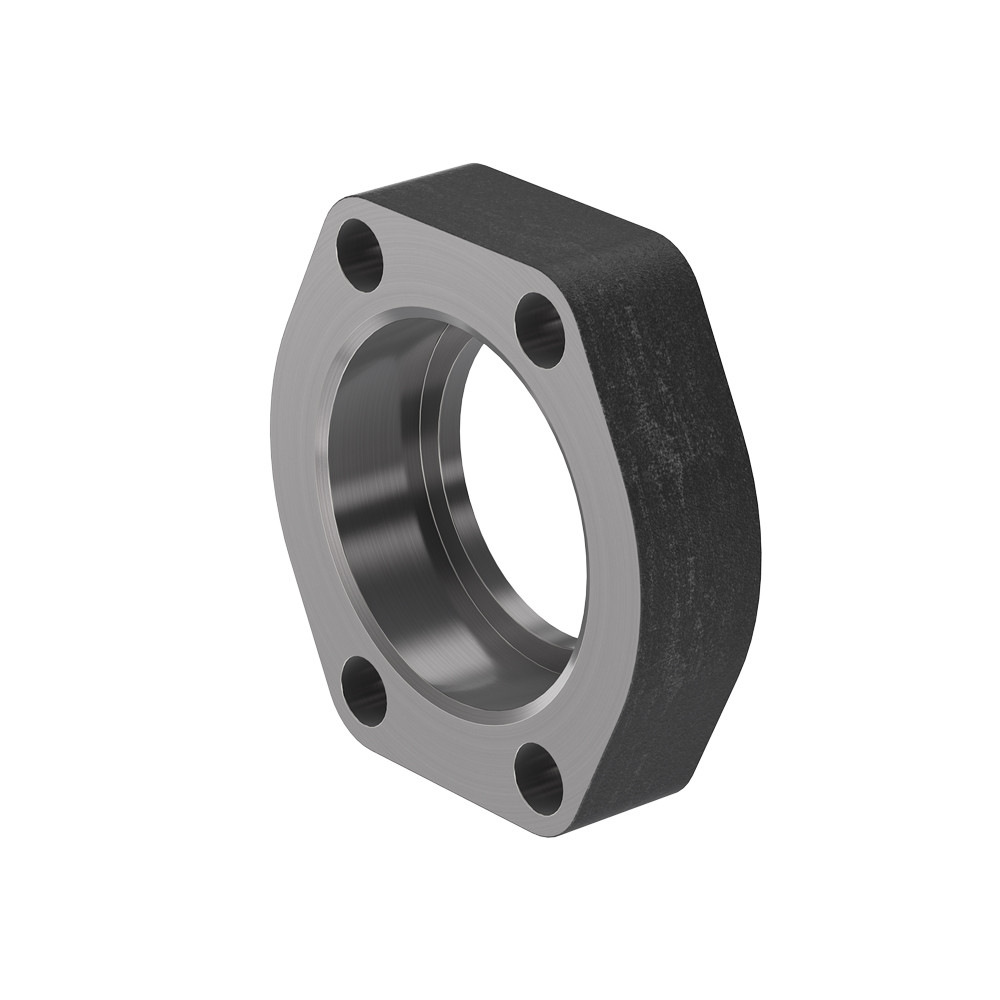

Steel, Flat Socket Pipe Weld 4-Bolt Flange Code 61 O-Ring Face, 4" Pipe Weld x 4" Pad Size
Specifications
| Connection Details | {"Connection End Type":"Pipe Weld","Connection End Pipe Size":"4\"","Connection End Standard":"ASME / ANSI B16.11","Connection End Role":"Weld Connection","Flange Interface Sealing Type":"O-Ring Face","Flange Interface Code":"Code 61","Flange Interface Pad Size":"4\""} |
|---|---|
| Body & Materials | {"Primary Material":"Steel","Material Grade":"C1020","Weight":"6.85 lb"} |
| Performance Specifications | {"Working Pressure":"500 psi","Temperature Range":"-65°F to 500°F","Burst Pressure":"2000 psi","Burst Ratio":"4:1"} |
| Series Configuration | Pipe Weld x O-Ring Face Code 61 Flange |
| Technical Series Configuration | Flat Socket Pipe Weld x SAE J518 Code 61 O-Ring Face Flange |
| Side 1 Connection Type | Pipe Weld |
