Attributes
| Part Number | D0304-C-L18 |
|---|---|
| Is Series Page | 0 |
Description
Steel, DIN 2353 Blanking Plug, Light 18mm Tube OD
Specifications
| Connection Details | {"Connection Type":"DIN Tube Cap","Tube OD":"18mm","DIN Pressure Series":"Light","Thread Type":"M26X1.5","Standard":"DIN 2353, ISO 8434-1","Connection Standard":"DIN 2353, ISO 8434-1","Role":"Line Connection","Connection Role":"Line Connection","Replacement Seal":"M4000-18"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Cap","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.24 lb"} |
| Performance Specifications | {"Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227"} |
| Cross References | {"Parker TFD Part Number":"VKAM18LCF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube Blanking Cap Assembly |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube Blanking Cap Assembly |
| Side 1 Connection Type | DIN Tube Cap |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents

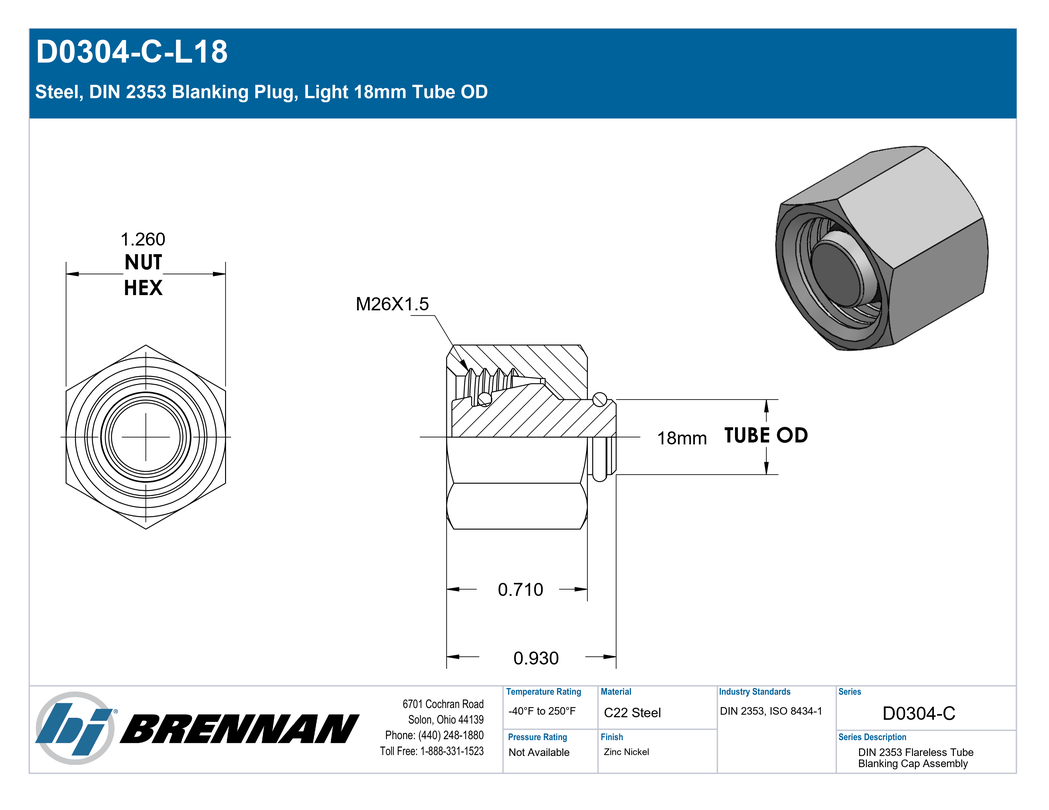

Specification Sheet
