Attributes
| Part Number | 9020-04-04-BS |
|---|---|
| Is Series Page | 0 |
Description

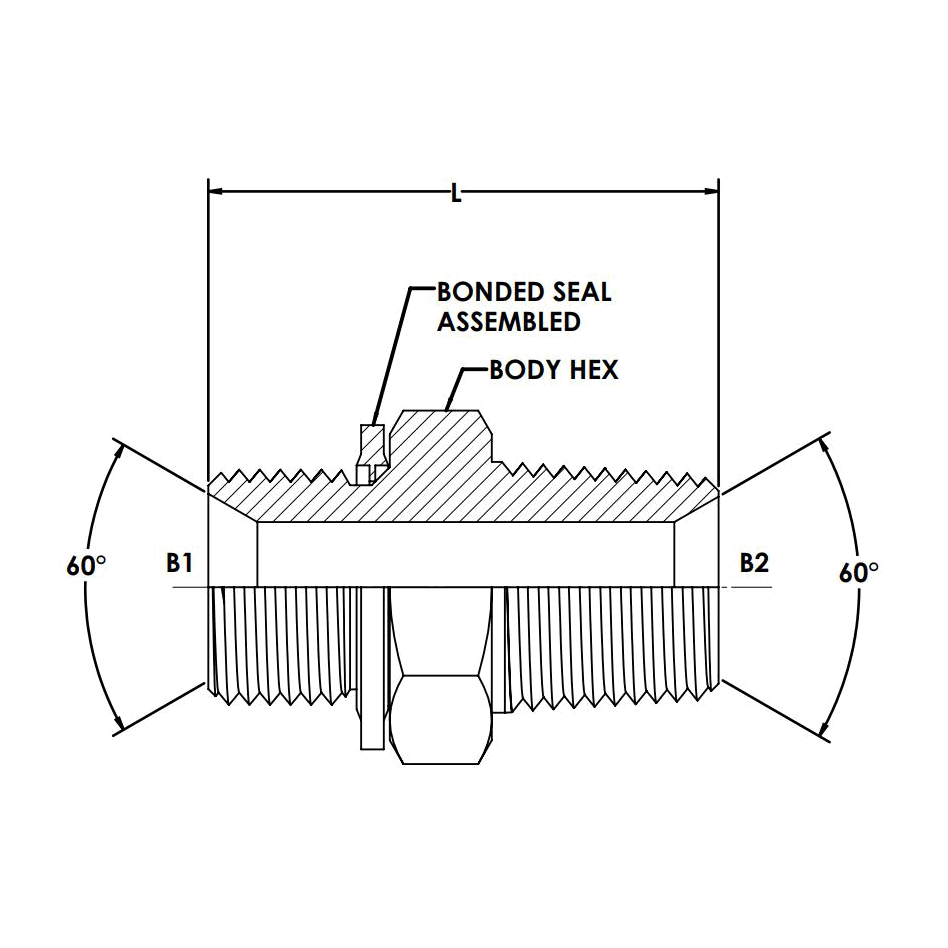

Steel, ISO 1179 BSPP Bonded Seal (Type D) Port/Line Male BSPT Connector, 1/4-19 Male BSPP 60° Line/Port x 1/4" Male BSPT 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male BSPP 60° Line/Port","Side 1 Thread Type":"G - 1/4-19","Side 1 Standard":"ISO 8434-6, ISO 1179","Side 1 Role":"Line/Port Connection","Side 1 Replacement Gasket":"9900-04","Side 2 Connection Type":"Male BSPT 30°","Side 2 Thread Type":"R - 1/4-19","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Feature":"Bonded Seal","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"0.748","Weight":"0.10 lb"} |
| Performance Specifications | {"Working Pressure":"5100 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"20400 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male BSPP x Male BSPT |
| Technical Series Configuration | ISO 1179/ISO 8434-6 Male BSPP Port/Line x ISO 7-1 Male BSPT Pipe Connector With Bonded Seal |
| Side 1 Connection Type | Male BSPP 60° Line/Port |
| Side 2 Connection Type | Male BSPT 30° |
| Shape | Straight |
| Product Type | Fittings |
