Attributes
| Part Number | FS6564-06-06-04 |
|---|---|
| Is Series Page | 0 |
Description
Steel, SAE J1453 O-Ring Face Seal Swivel Adapter ORB Diagnostic Port, 3/8" Male ORFS x 3/8" Female ORFS Swivel x 7/16-20 UNF Female ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/8\"","Side 1 Thread Type":"11/16-16 UNF","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-06","Side 2 Connection Type":"Female ORFS Swivel","Side 2 Tube OD":"3/8\"","Side 2 Thread Type":"11/16-16 UNF","Side 2 Standard":"SAE J1453 - Class 2B Thread","Side 2 Role":"Line Connection","Side 3 Connection Type":"Female ORB","Side 3 Thread Type":"7/16-20 UNF","Side 3 Standard":"SAE J1926","Side 3 Role":"Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Diagnostic Tee","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.29 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"6-4 LOHL6G5TP-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORFS x Female ORFS Swivel x Female ORB |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x Female ORFS Swivel Tube x SAE J1926-1 Female O-Ring Boss Port Diagnostic Tee |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Female ORFS Swivel |
| Shape | Tee |
| Product Type | Fittings |
PDF Documents

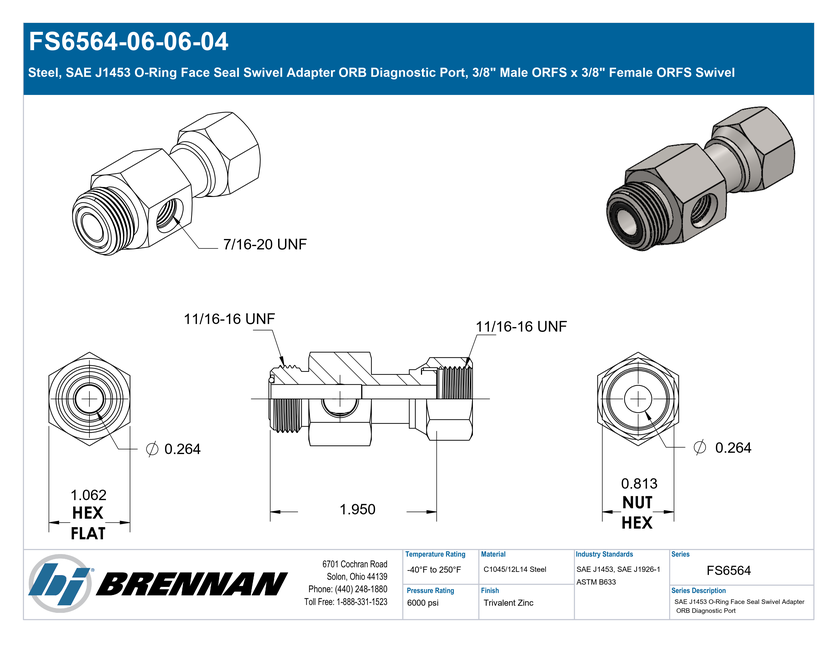

Specification Sheet
Open PDF
