Attributes
| Part Number | FS2404-12-16-SS |
|---|---|
| Is Series Page | 0 |
Description
Stainless Steel, SAE J1453 O-Ring Face Seal Male Connector, 3/4" Male ORFS x 1" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male ORFS","Side 1 Tube OD":"3/4\"","Side 1 Thread Type":"1-3/16-12 UN","Side 1 Standard":"SAE J1453 - Class 2A Thread","Side 1 Role":"Line/Tube Connection","Side 1 Replacement Seal":"FS4000-12","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Connector","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.46 lb"} |
| Performance Specifications | {"Working Pressure":"5400 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"21600 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-FF2031T1216","Parker TFD Part Number":"12-16 FLO-SS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORFS x Male Pipe |
| Technical Series Configuration | SAE J1453 Male ORFS Tube x SAE J476 Male NPTF Connector |
| Side 1 Connection Type | Male ORFS |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents

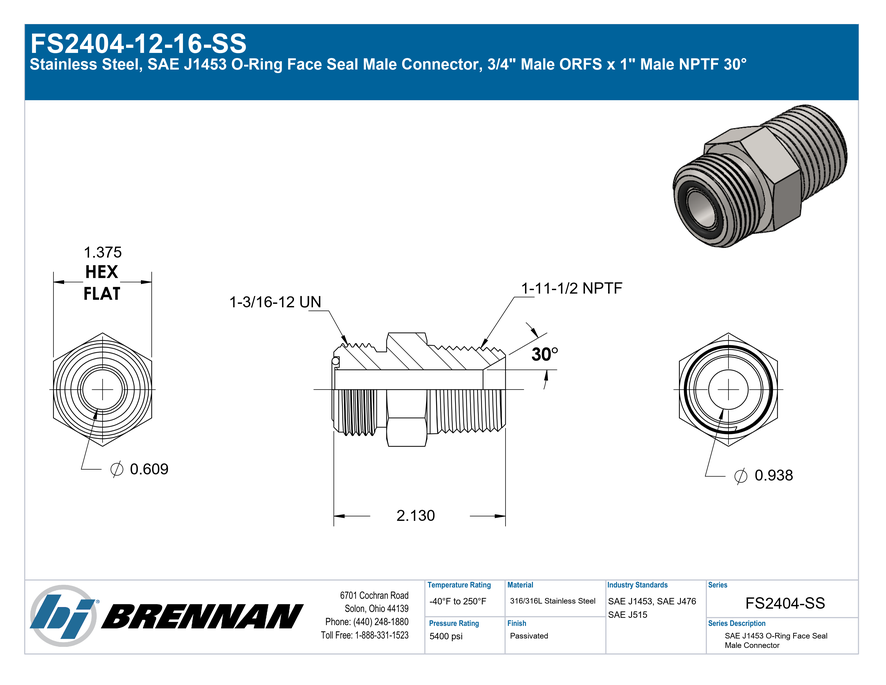

Specification Sheet
Open PDF
