Attributes
| Part Number | D7601-L15-L15-08 |
|---|---|
| Is Series Page | 0 |
Description

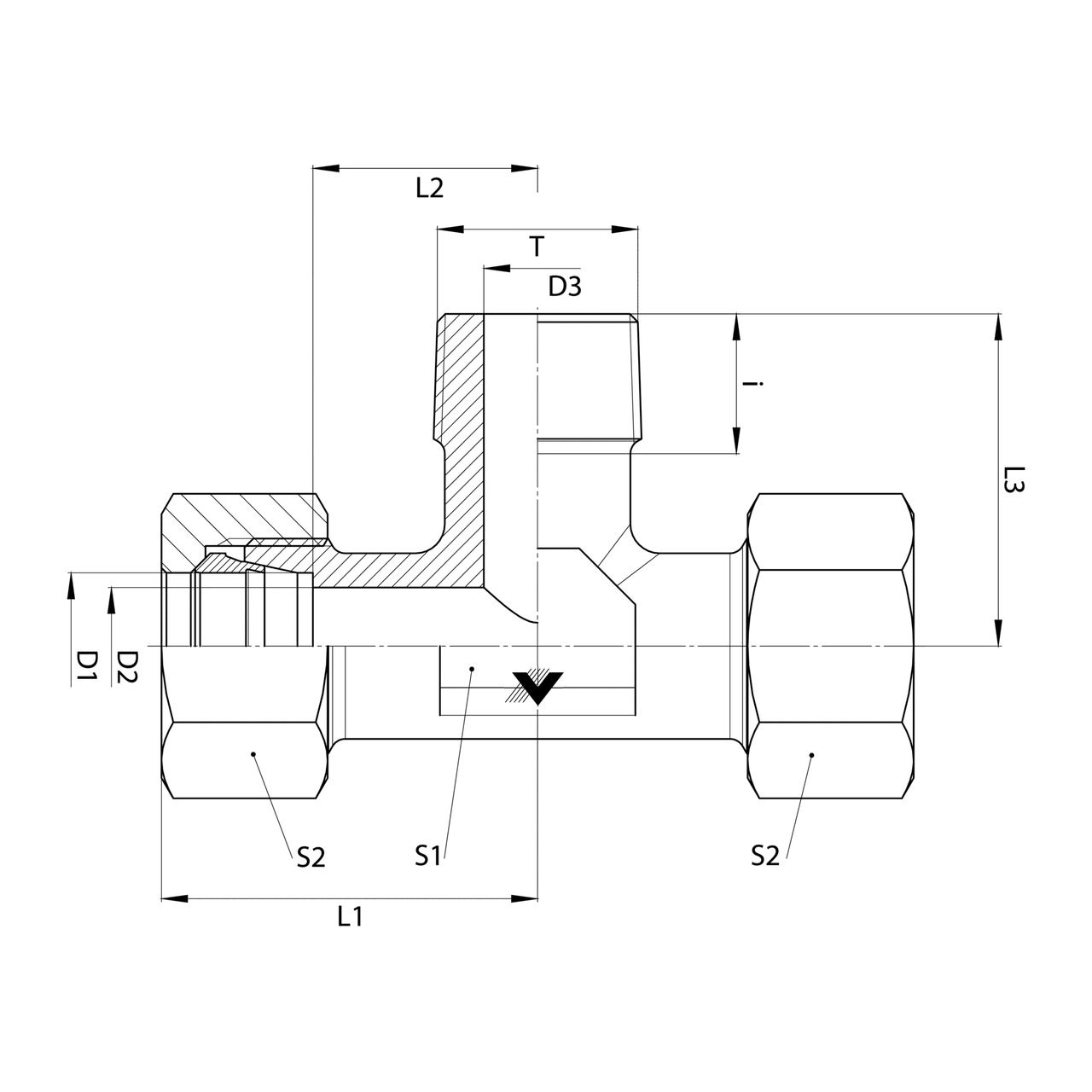

Steel, DIN 2353 Male Branch Tee, Light 15mm Tube OD x Light 15mm Tube OD x 1/2" BSPT
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"15mm","Side 1 Thread Type":"M22X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Light","Side 2 Connection Type":"DIN Tube","Side 2 Tube OD":"15mm","Side 2 Thread Type":"M22X1.5","Side 2 Standard":"DIN 2353, ISO 8434-1","Side 2 Role":"Tube Connection","Side 2 DIN Pressure Series":"Light","Side 3 Connection Type":"Male BSPT","Side 3 Thread Type":"1/2-14","Side 3 Standard":"ISO 7-1","Side 3 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Tee","Shape Type":"Male Branch Tee","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel"} |
| Dimensions | {"Hex/Wrench":"19mm","Weight":"0.49 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"TE15LRCF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube x DIN Tube x Male BSPT |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x Flareless Tube x DIN 3852-2 Form C Male BSPT Branch Tee |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | DIN Tube |
| Shape | Tee |
| Product Type | Fittings |
