Attributes
| Part Number | ED4000-M20 |
|---|---|
| Is Series Page | 0 |
Description

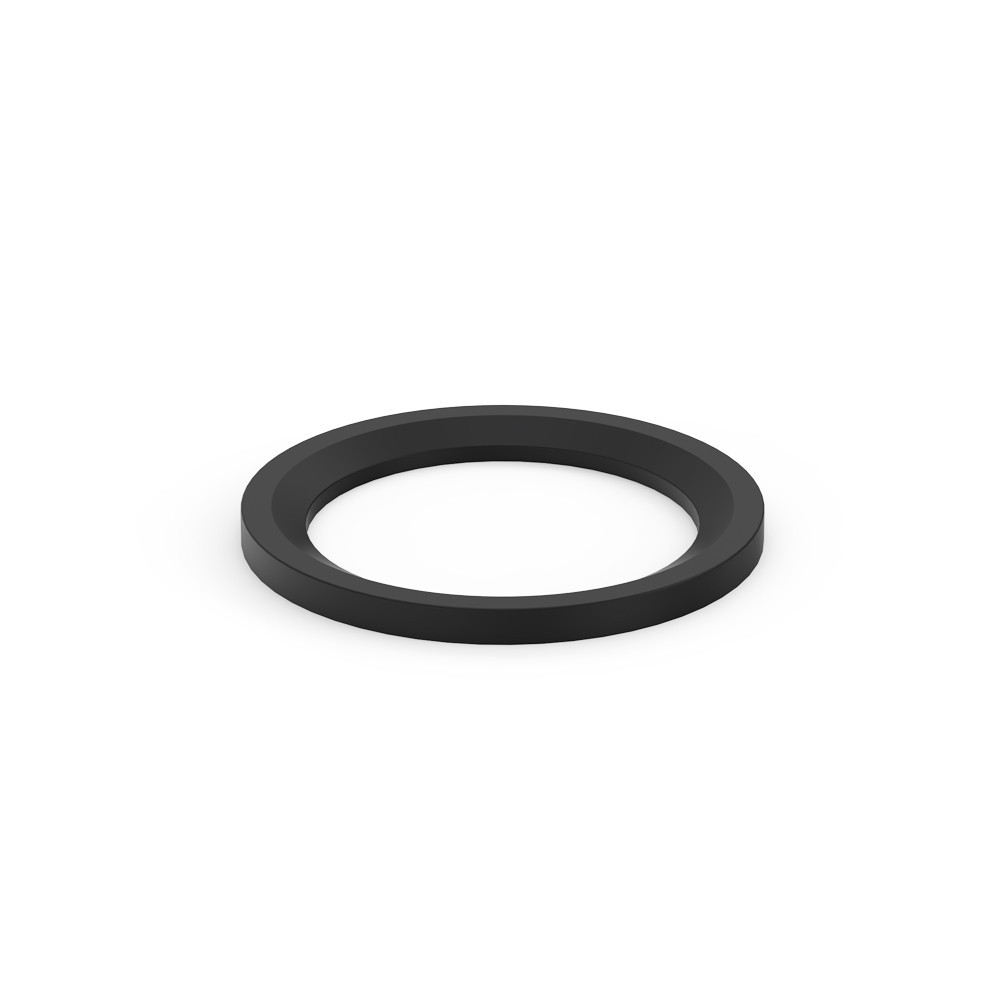

Nitrile, Metric Captive O-Ring Seal for 20mm Metric (Type E) Port
Specifications
| Specifications | {"Exact OD":"22.9mm","Exact ID":"17.8mm","Exact Width":"1.5mm","Color":"Black","Gasket Dash Size":"-M20","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)","Temperature":"°F to °F","Dash Size":"-M20","Seal Hardness":"85 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, fuels, diesel, gasoline, hydraulic fluids, aliphatic hydrocarbons, water (below 150°F), natural gas, air","Not Recommended For":"Phosphate ester fluids, glycol-based brake fluids, strong acids, ozone, weathering, ketones, esters, chlorinated hydrocarbons"} |
| Cross References | {"Parker TFD Part Number":"ED20X1.5X"} |
