Attributes
| Part Number | FS2408-20 |
|---|---|
| Is Series Page | 0 |
Description

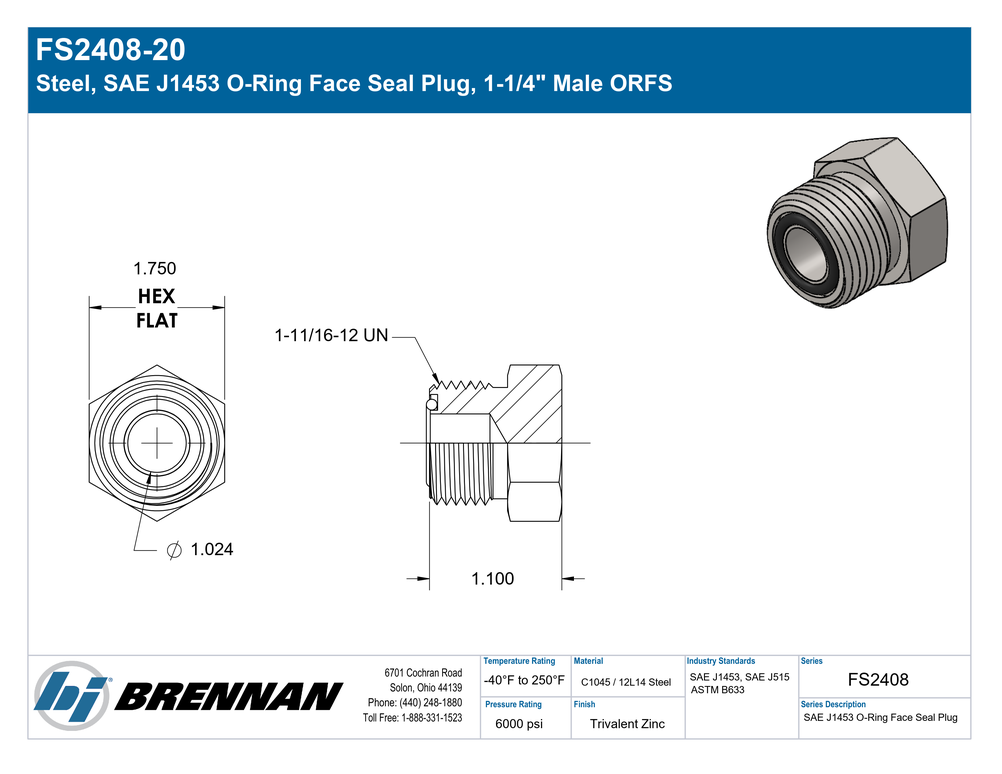

Steel, SAE J1453 O-Ring Face Seal Plug, 1-1/4" Male ORFS
Specifications
| Connection Details | {"Connection Type":"Male ORFS","Tube OD":"1-1/4\"","Thread Type":"1-11/16-12 UN","Standard":"SAE J1453","Connection Standard":"SAE J1453","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection","Replacement Seal":"FS4000-20"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.56 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FF9767T20-S","Parker TFD Part Number":"20 PNLO-S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORFS Plug |
| Technical Series Configuration | SAE J1453 Male ORFS Tube Plug |
| Side 1 Connection Type | Male ORFS |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
