Attributes
| Part Number | 5406-12-08-B |
|---|---|
| Is Series Page | 0 |
Description

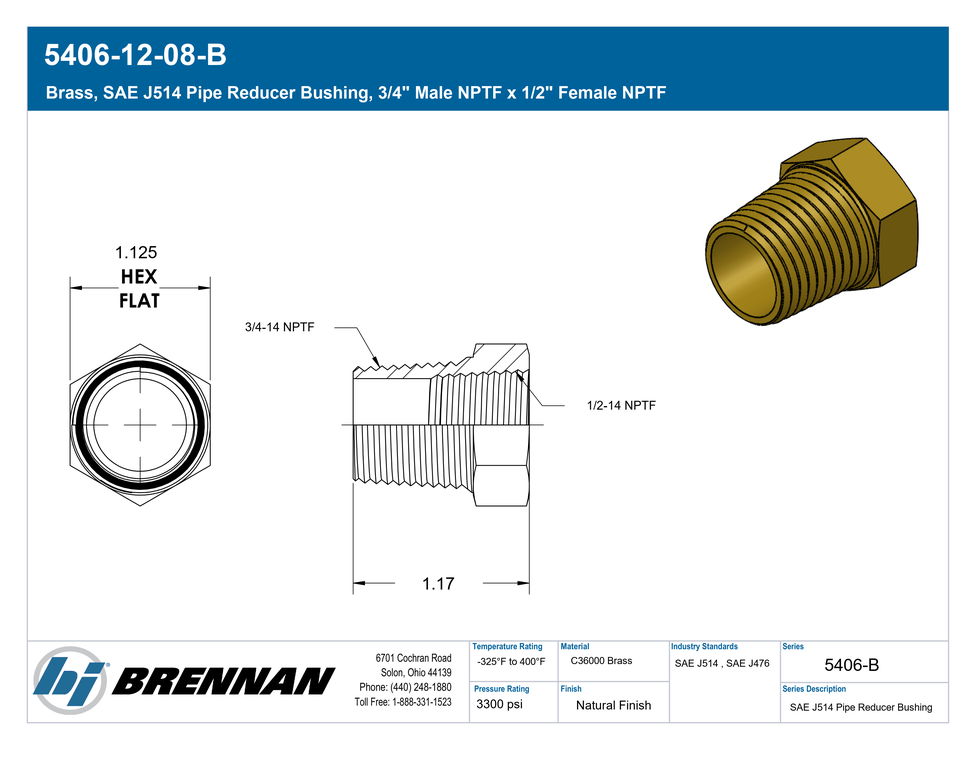

Brass, SAE J514 Pipe Reducer Bushing, 3/4" Male NPTF x 1/2" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF","Side 1 Pipe Size":"3/4\"","Side 1 Thread Type":"3/4-14 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1/2\"","Side 2 Thread Type":"1/2-14 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Reducer Bushing","Primary Material":"Brass","Material Grade":"C36000","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.17 lb"} |
| Performance Specifications | {"Working Pressure":"3300 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"13200 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"2081-12-8B","Parker Hose Part Number":"0102-12-8-B","Parker TFD Part Number":"3/4 X 1/2 PTR-B","SAE J514 Part Number":"SAE J514 12-8 140140B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPTF Reducer Coupling |
| Side 1 Connection Type | Male NPTF |
| Side 2 Connection Type | Female NPTF |
| Shape | Straight |
| Product Type | Fittings |
