Attributes
| Part Number | 9644-C-20 |
|---|---|
| Is Series Page | 0 |
Description

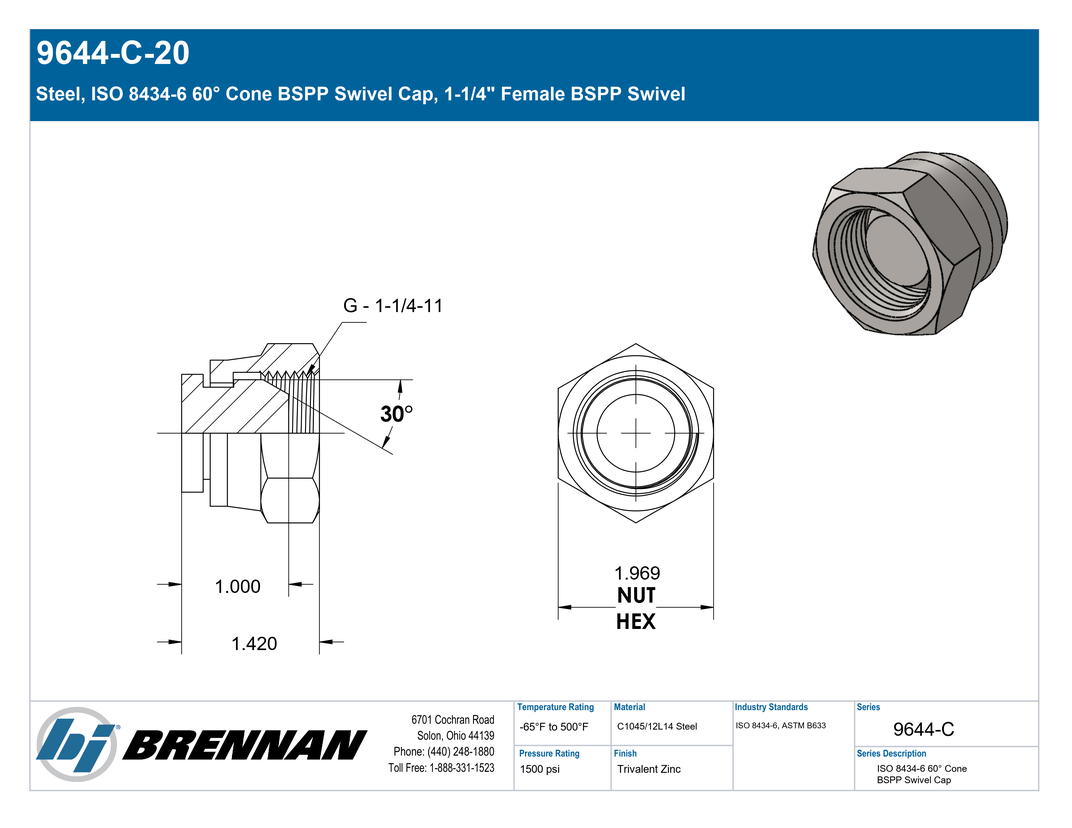

Steel, ISO 8434-6 60° Cone BSPP Swivel Cap, 1-1/4" Female BSPP Swivel
Specifications
| Connection Details | {"Connection Type":"Female BSPP Swivel","Tube OD":"1-1/4\"","Thread Type":"G - 1-1/4-11","Standard":"ISO 8434-6","Connection Standard":"ISO 8434-6","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Swivel Cap","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"1.969","Weight":"0.85 lb"} |
| Performance Specifications | {"Working Pressure":"1500 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"6000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"20FNMK4S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female BSPP Swivel Cap |
| Technical Series Configuration | ISO 8434-6 Female BSPP Swivel Line Cap |
| Side 1 Connection Type | Female BSPP Swivel |
| Shape | Cap/Plug |
| Product Type | Fittings |
