Attributes
| Part Number | FS0306-N-06 |
|---|---|
| Is Series Page | 0 |
Description

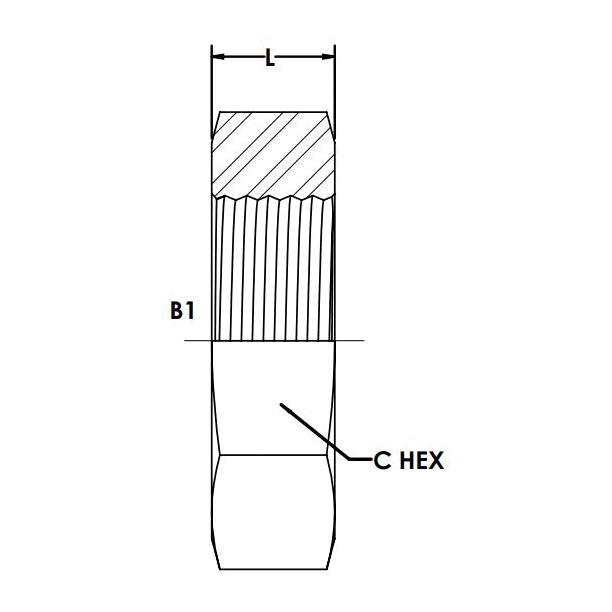

06FS NWO Backup Nut
Specifications
| Body & Materials | {"Shape":"Nut","Shape Type":"Adjustable Nut","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
|---|---|
| Dimensions | {"Weight":"0.02 lb"} |
| Performance Specifications | {"Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male ORB Adjustable Nut |
| Technical Series Configuration | SAE J1926-2 Adjustable Nut |
| Shape | Nut/Sleeve |
| Product Type | Fittings |
