Attributes
| Part Number | 1965-62-20-20 |
|---|---|
| Is Series Page | 0 |
Description

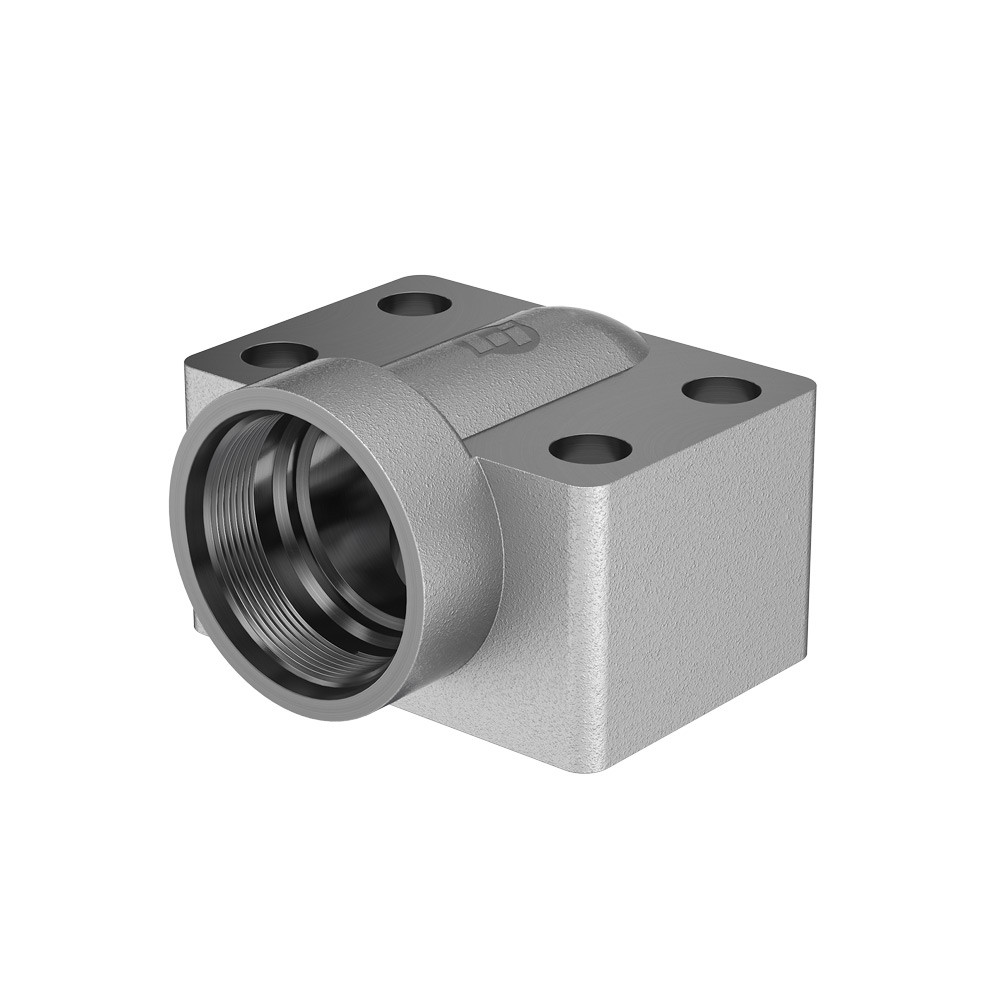

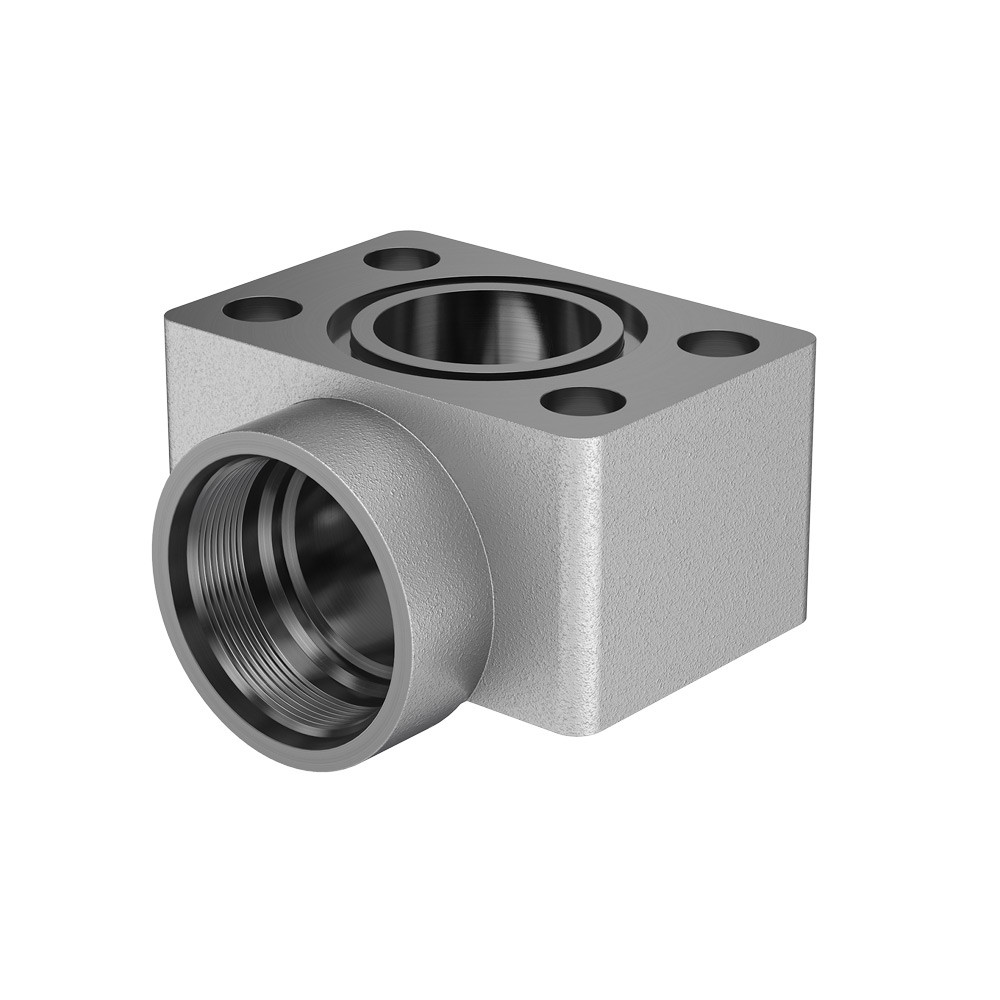

Steel, SAE Port 4-Bolt Flange Elbow Code 62 O-Ring Face, 1-5/8-12 Female ORB x 1-1/4" Pad Size
Specifications
| Connection Details | {"Connection End Type":"Female ORB","Connection End Thread":"1-5/8-12 UN","Connection End Standard":"SAE J1926 - Class 2B","Connection End Role":"Port Connection","Flange Interface Sealing Type":"O-Ring Face","Flange Interface Code":"Code 62","Flange Interface Pad Size":"1-1/4\""} |
|---|---|
| Body & Materials | {"Primary Material":"Steel","Material Grade":"C1020 steel","Weight":"4.8417 lb"} |
| Performance Specifications | {"Working Pressure":"3500 psi","Temperature Range":"-65°F to 500°F","Burst Pressure":"14000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"20G5EQ2BSX"} |
| Series Configuration | Female ORB x O-Ring Face Code 62 Flange |
| Technical Series Configuration | SAE J1926 Female O-Ring Boss x SAE J518 Code 62 O-Ring Face Flange |
| Side 1 Connection Type | Female ORB |
