Attributes
| Part Number | 4001-04 |
|---|---|
| Is Series Page | 0 |
Description

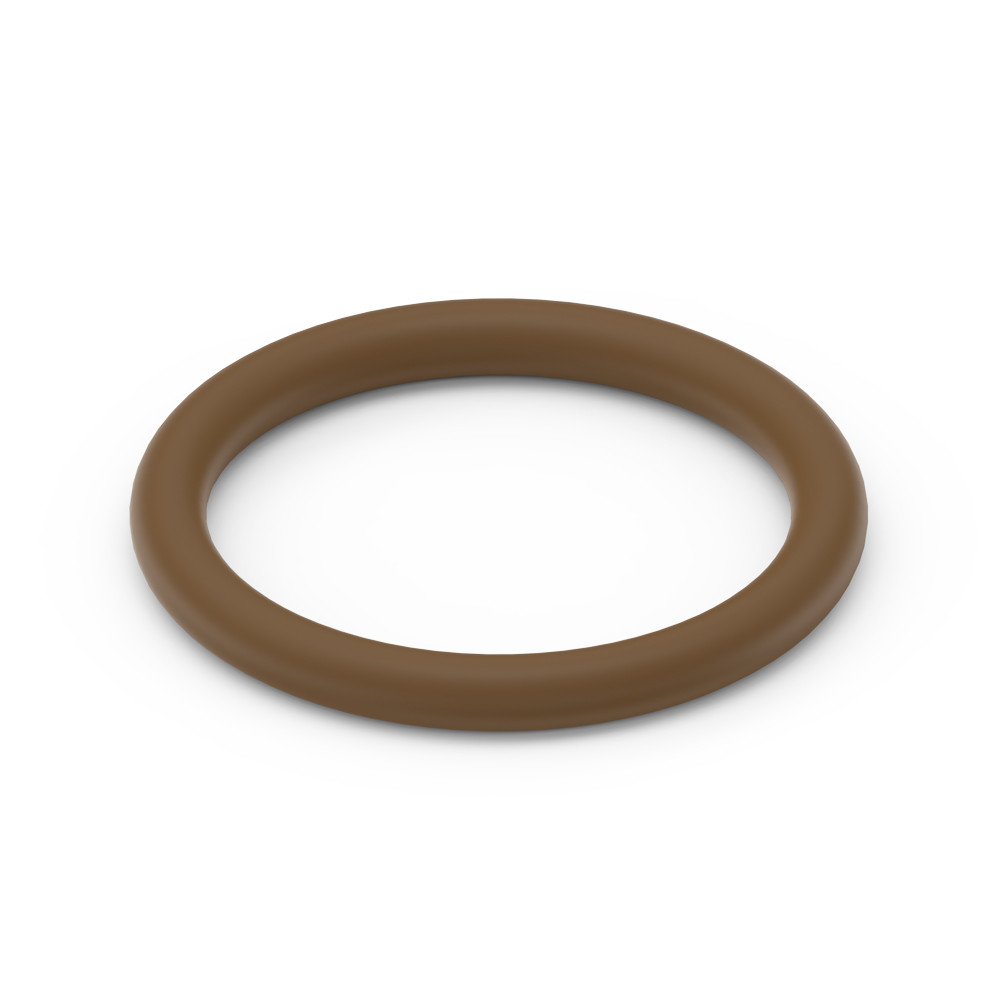

Fluorocarbon, SAE ORB Seal for Dash Size -04 O-Ring Boss
Specifications
| Specifications | {"Nominal OD":"1/4\"","Exact OD":"0.495\"","Exact ID":"0.351\"","Exact Width":"0.072\"","Color":"Brown","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)","Temperature":"-15°F to 400°F","Dash Number":"-904","Dash Size":"-04","Seal Hardness":"90 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, synthetic lubricants, fuels, diesel, gasoline, hydraulic oils, phosphate ester fluids, silicone oils and greases, diester lubricants, aromatic hydrocarbons, many chlorinated hydrocarbons, mild acids","Not Recommended For":"Ketones, amines, low molecular weight esters and ethers, hot hydrofluoric acids, strong alkalis, steam, hot water, glycol-based brake fluids"} |
| Cross References | {"Aeroquip Part Number":"22068-4","Parker TFD Part Number":"3-904 FKM"} |
| Shape | O-Ring |
