Attributes
| Part Number | 0304-C-40 |
|---|---|
| Is Series Page | 0 |
Description

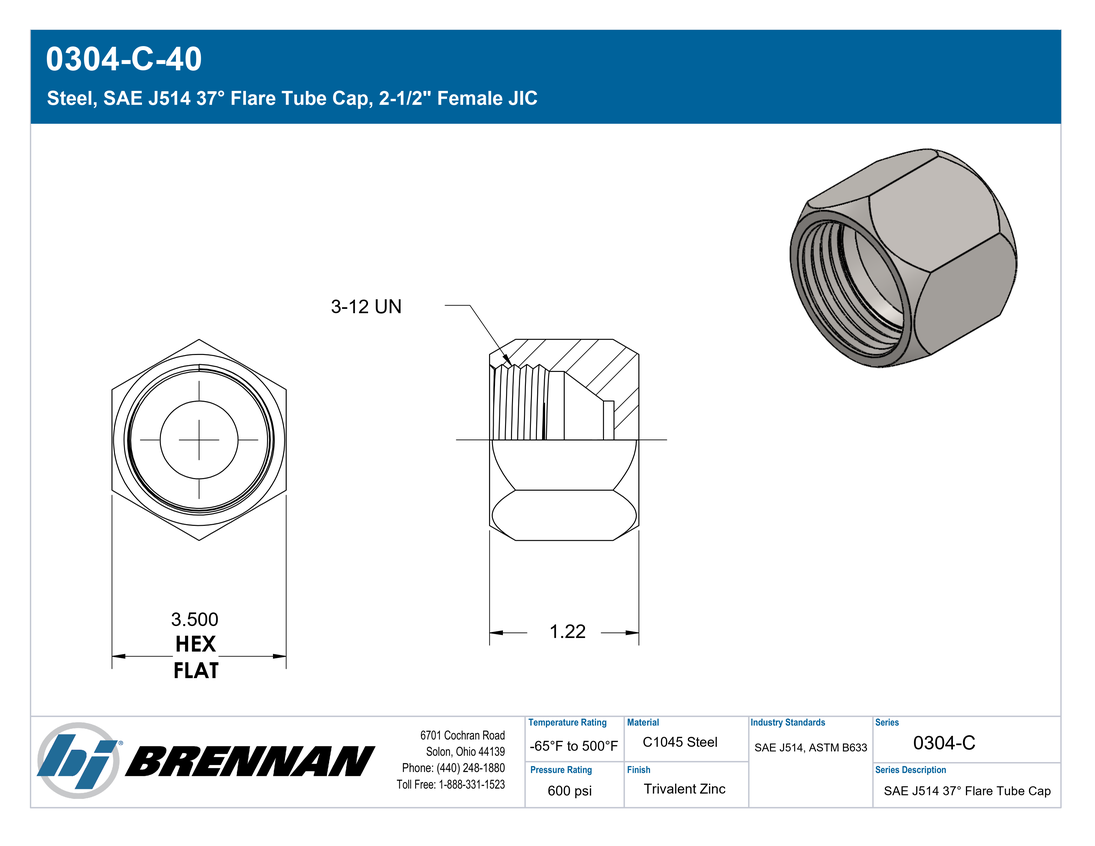

Steel, SAE J514 37° Flare Tube Cap, 2-1/2" Female JIC
Specifications
| Connection Details | {"Connection Type":"Female JIC","Tube OD":"2-1/2\"","Thread Type":"3-12 UN","Standard":"SAE J514","Connection Standard":"SAE J514","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Shape Type":"Cap","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"1.93 lb"} |
| Performance Specifications | {"Working Pressure":"600 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"2400 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"210292-40S","Parker Hose Part Number":"06CP-40","Parker TFD Part Number":"40 FNTX-S","SAE J514 Part Number":"SAE J514 40 070112C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | JIC Cap |
| Technical Series Configuration | SAE J514 Female JIC Tube Cap |
| Side 1 Connection Type | Female JIC |
| Shape | Cap/Plug |
| Product Type | Fittings |
