Attributes
| Part Number | FS4001-12 |
|---|---|
| Is Series Page | 0 |
Description

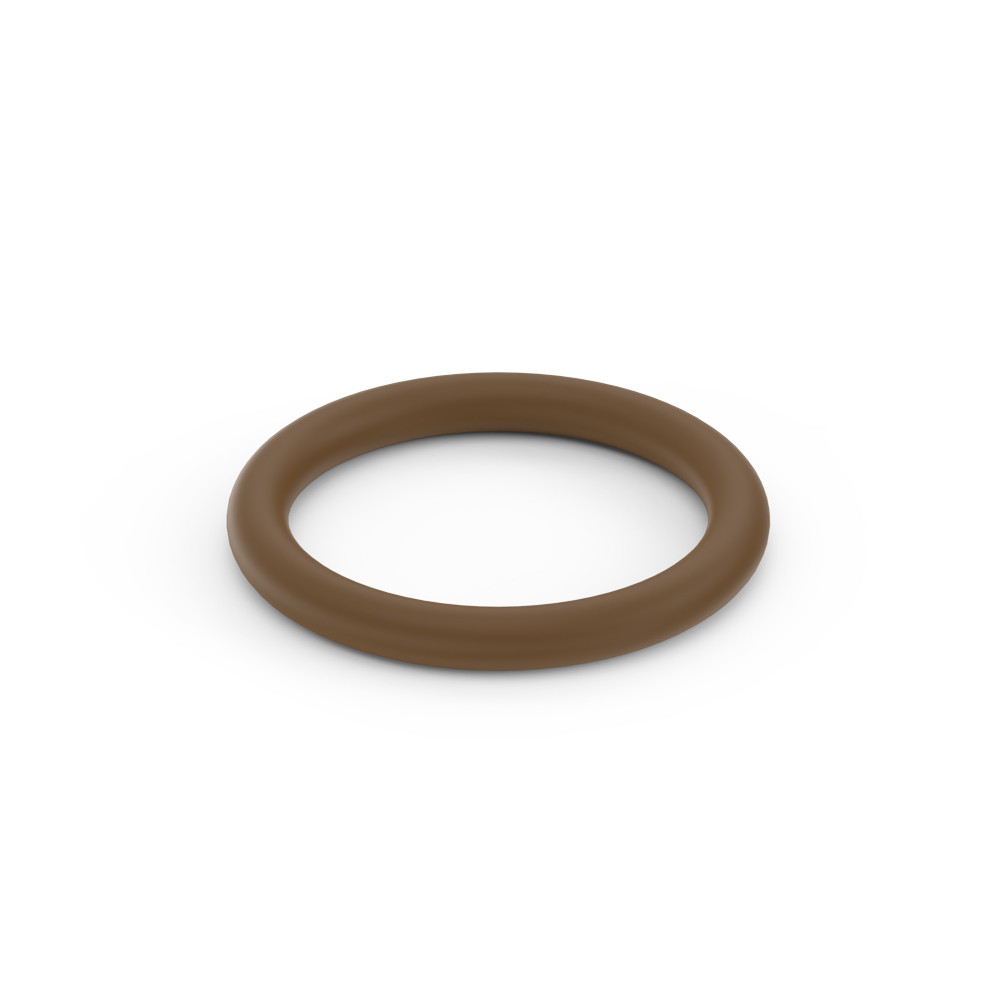

Fluorocarbon, SAE ORFS O-Ring Seal for 3/4" Tube OD ORFS
Specifications
| Specifications | {"Nominal OD":"7/8\"","Exact OD":"0.879\"","Exact ID":"0.739\"","Exact Width":"0.07\"","Color":"Brown","Seal Code":"FKM","Seal Material":"Viton (Fluorocarbon)","Temperature":"-40°F to 250°F","Dash Number":"-018","Dash Size":"-12","Seal Hardness":"90 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, synthetic lubricants, fuels, diesel, gasoline, hydraulic oils, phosphate ester fluids, silicone oils and greases, diester lubricants, aromatic hydrocarbons, many chlorinated hydrocarbons, mild acids","Not Recommended For":"Ketones, amines, low molecular weight esters and ethers, hot hydrofluoric acids, strong alkalis, steam, hot water, glycol-based brake fluids"} |
| Cross References | {"Aeroquip Part Number":"22046-18","Parker TFD Part Number":"2-018 FKM"} |
| Shape | O-Ring |
PDF Documents
No PDF documents.
