Attributes
| Part Number | 1952-24-M16-H |
|---|---|
| Is Series Page | 0 |
Description

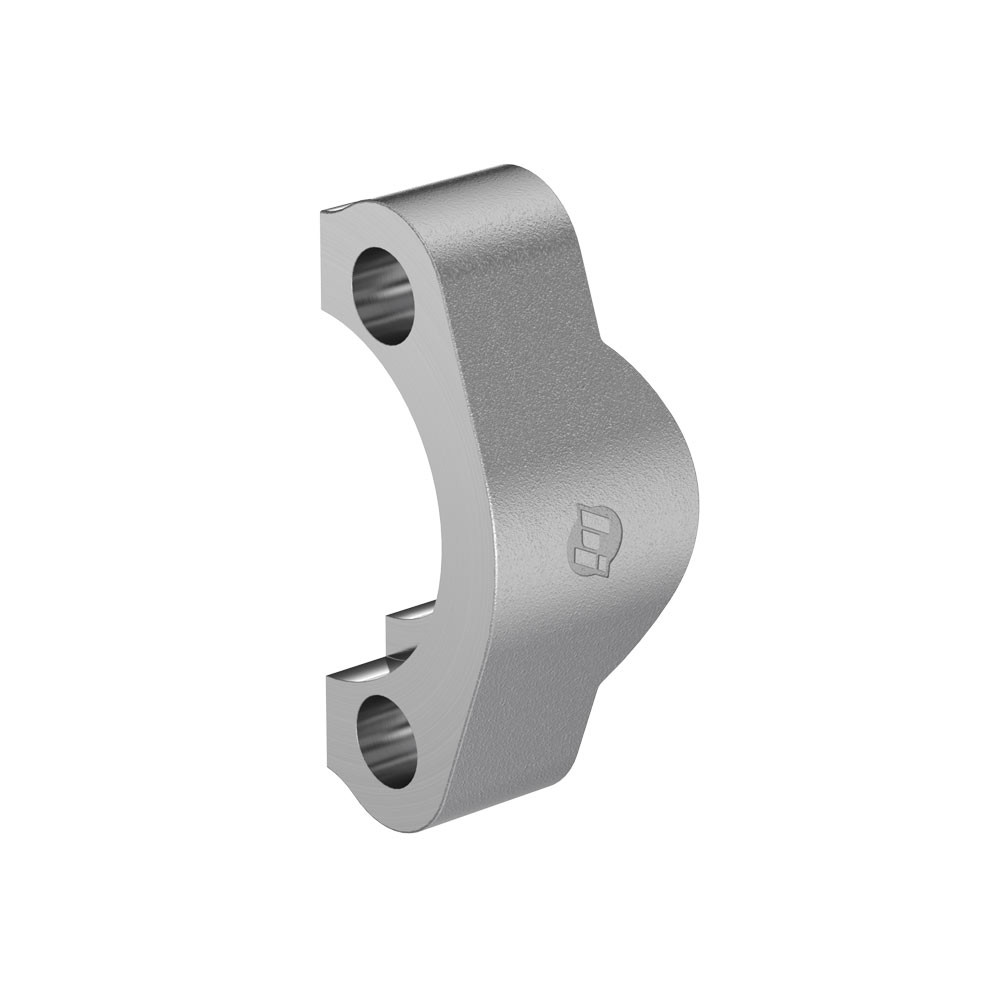

Steel, SAE J518 Code 62 Split Flange Half with Metric Bolt Holes, 1-1/2" Flange Size, M16
Specifications
| Connection Details | {"Flange Interface Code":"Code 62","Flange Interface Flange Size":"1-1/2\""} |
|---|---|
| Body & Materials | {"Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Weight":"1.5 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker Hose Part Number":"M2H-24"} |
| Series Configuration | Code 62 Split Flange Pair w/ Metric Bolt Holes |
| Technical Series Configuration | SAE J518 Code 62 Split Flange Half with Metric Bolt Holes |
