Attributes
| Part Number | 5503-04-04-FG-B |
|---|---|
| Is Series Page | 0 |
Description

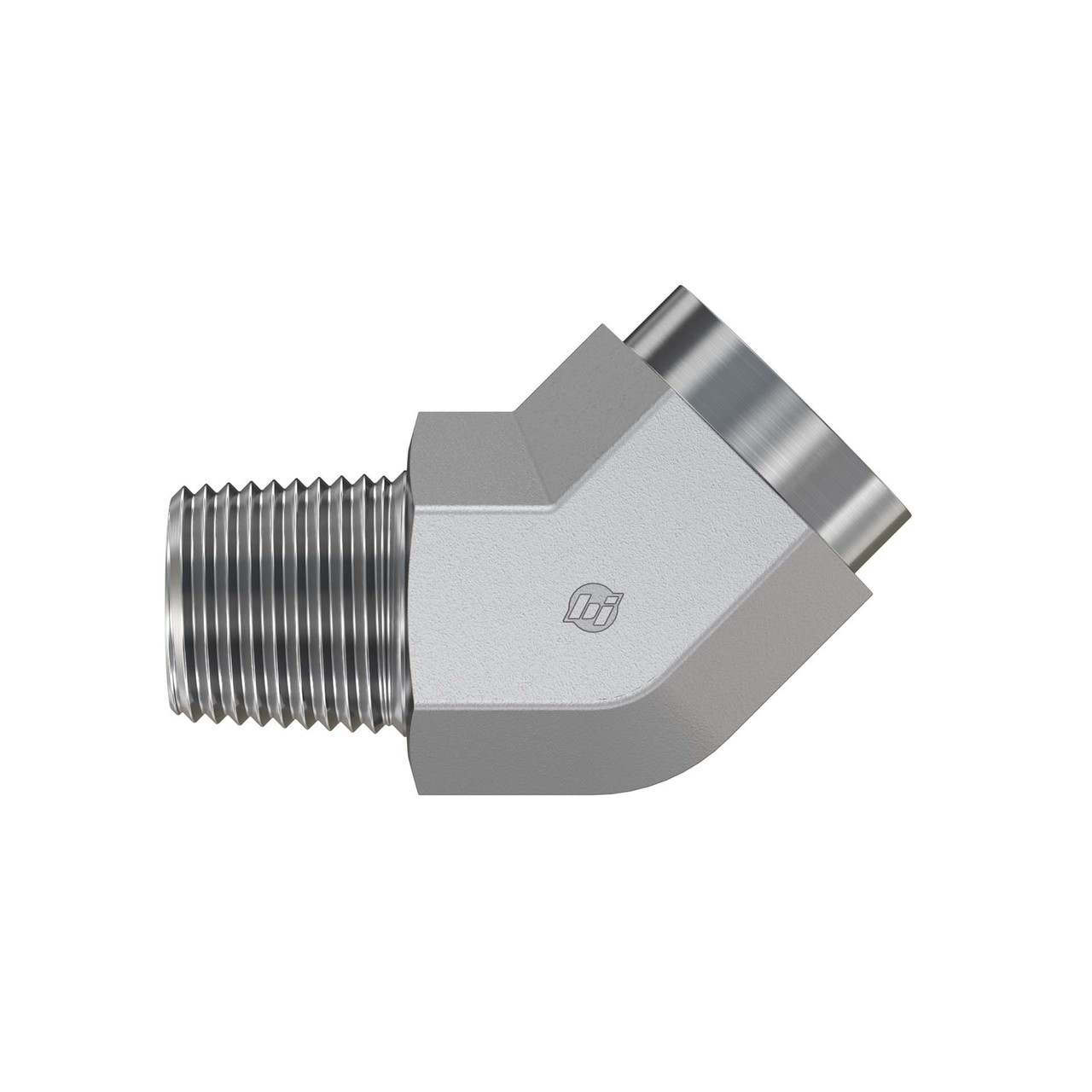

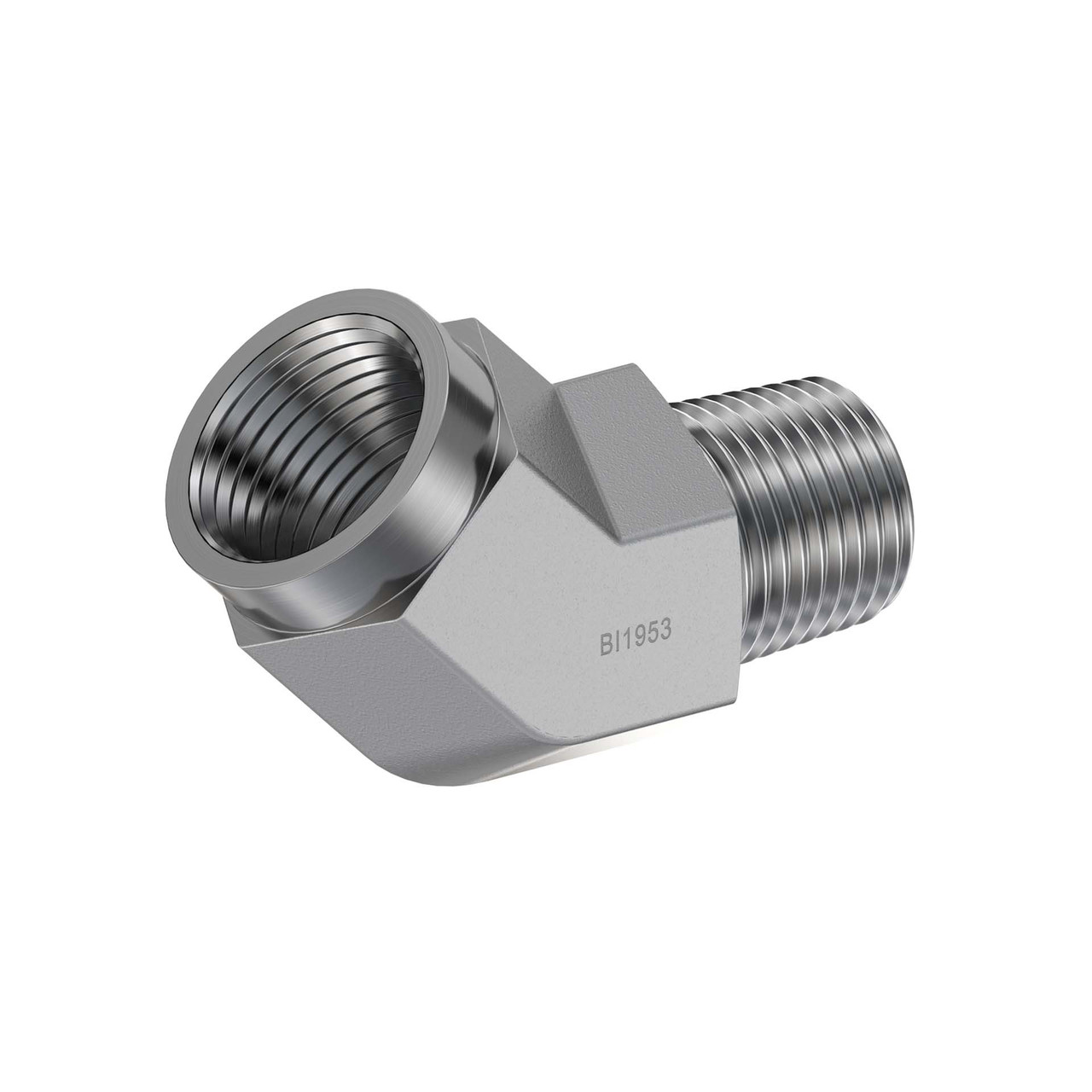

Brass, SAE J514 Pipe 45° Street Elbow, 1/4" Male NPTF 30° x 1/4" Female NPTF
Specifications
| Connection Details | {"Side 1 Connection Type":"Male NPTF 30°","Side 1 Pipe Size":"1/4\"","Side 1 Thread Type":"1/4-18 NPTF","Side 1 Standard":"SAE J476","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Female NPTF","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Street Elbow","Primary Material":"Brass","Material Grade":"CA377","Surface Treatment":"Natural Finish"} |
| Dimensions | {"Weight":"0.14 lb"} |
| Performance Specifications | {"Working Pressure":"3200 psi","Temperature Range":"-325°F to 400°F","Burst Pressure":"12800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"1/4 CD45-B"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6c (Lead in copper alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male Pipe x Female Pipe |
| Technical Series Configuration | SAE J476 Male NPTF x Female NPTF 45° Street Elbow |
| Side 1 Connection Type | Male NPTF 30° |
| Side 2 Connection Type | Female NPTF |
| Shape | 45° Elbow |
| Product Type | Fittings |
PDF Documents

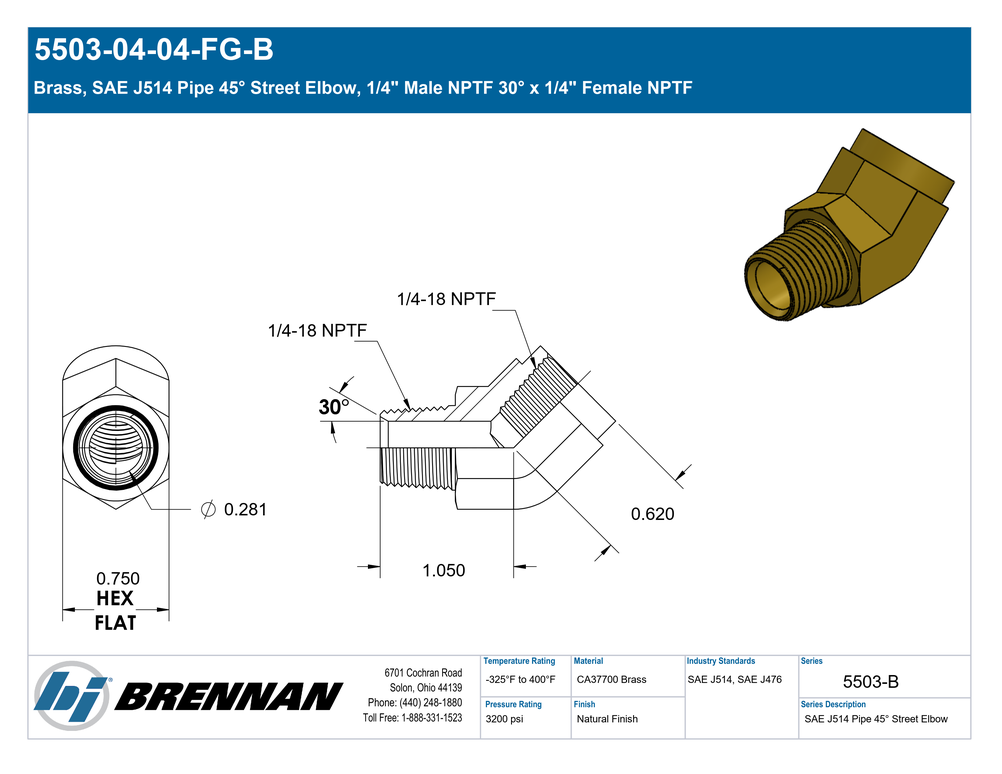

Specification Sheet
Open PDF
