Attributes
| Part Number | 9211-12-12-SS |
|---|---|
| Is Series Page | 0 |
Description

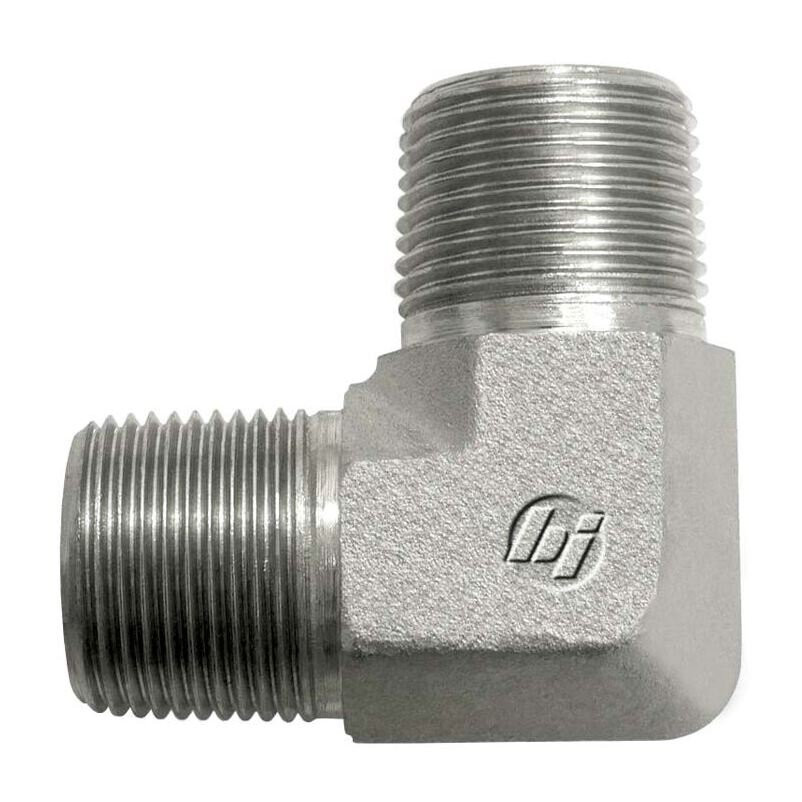

Stainless Steel, ISO 7-1 (Type R) Male BSPT Union 90° Elbow, 3/4" Male BSPT 30° x 3/4" Male BSPT 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Male BSPT 30°","Side 1 Pipe Size":"3/4\"","Side 1 Thread Type":"R - 3/4-14","Side 1 Standard":"ISO 7-1","Side 1 Role":"Line/Pipe Connection","Side 2 Connection Type":"Male BSPT 30°","Side 2 Pipe Size":"3/4\"","Side 2 Thread Type":"R - 3/4-14","Side 2 Standard":"ISO 7-1","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"90° Elbow","Shape Type":"Male Union Elbow","Primary Material":"Stainless Steel","Material Grade":"316/316L","Surface Treatment":"Passivated"} |
| Dimensions | {"Hex/Wrench":"1.062","Weight":"0.48 lb"} |
| Performance Specifications | {"Working Pressure":"5500 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"22000 psi","Burst Ratio":"4:1"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male BSPT x Male BSPT |
| Technical Series Configuration | ISO 7-1 Male BSPT Pipe x Male BSPT Pipe 90° Union Elbow |
| Side 1 Connection Type | Male BSPT 30° |
| Side 2 Connection Type | Male BSPT 30° |
| Shape | 90° Elbow |
| Product Type | Fittings |
