Attributes
| Part Number | 1951-32-SS |
|---|---|
| Is Series Page | 0 |
Description

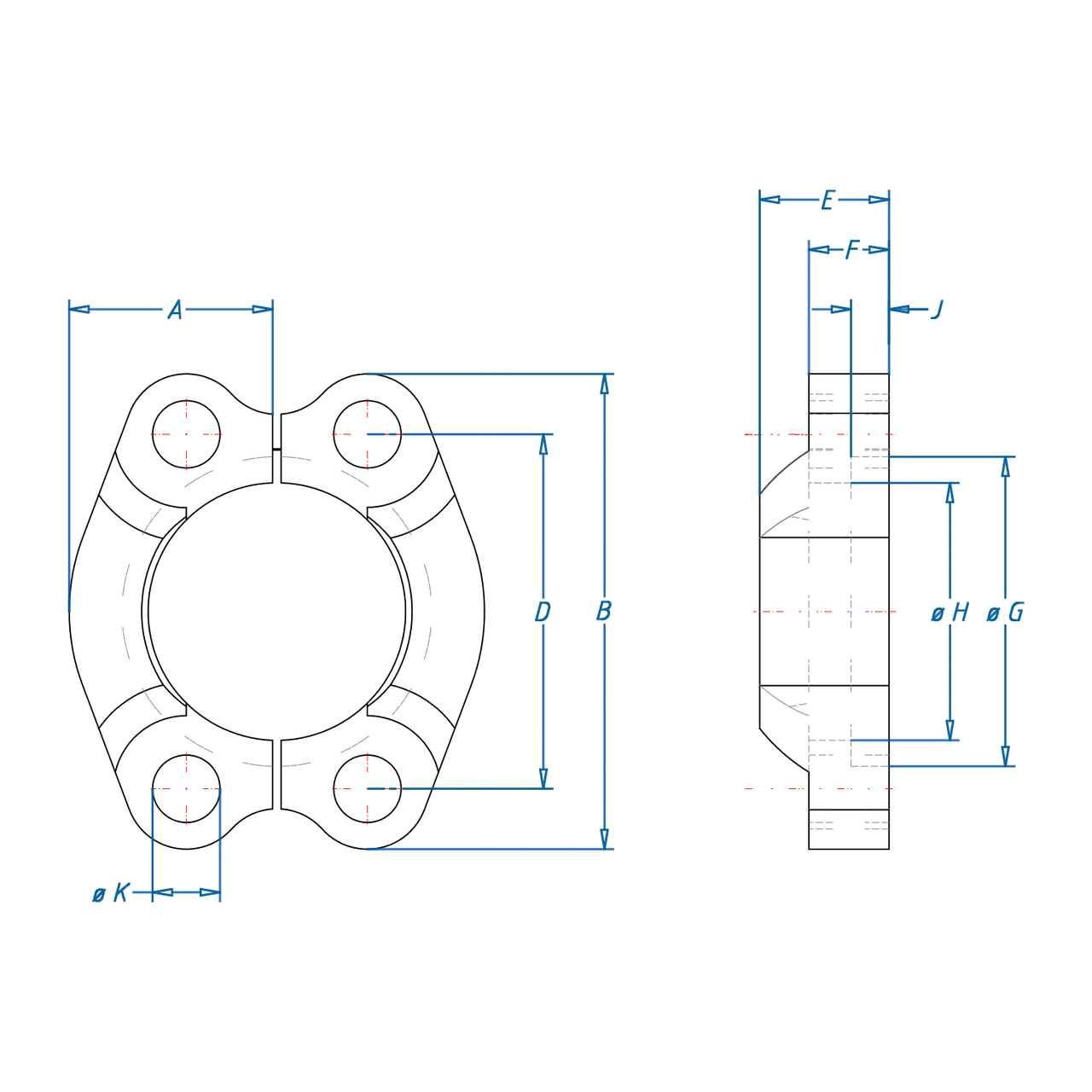

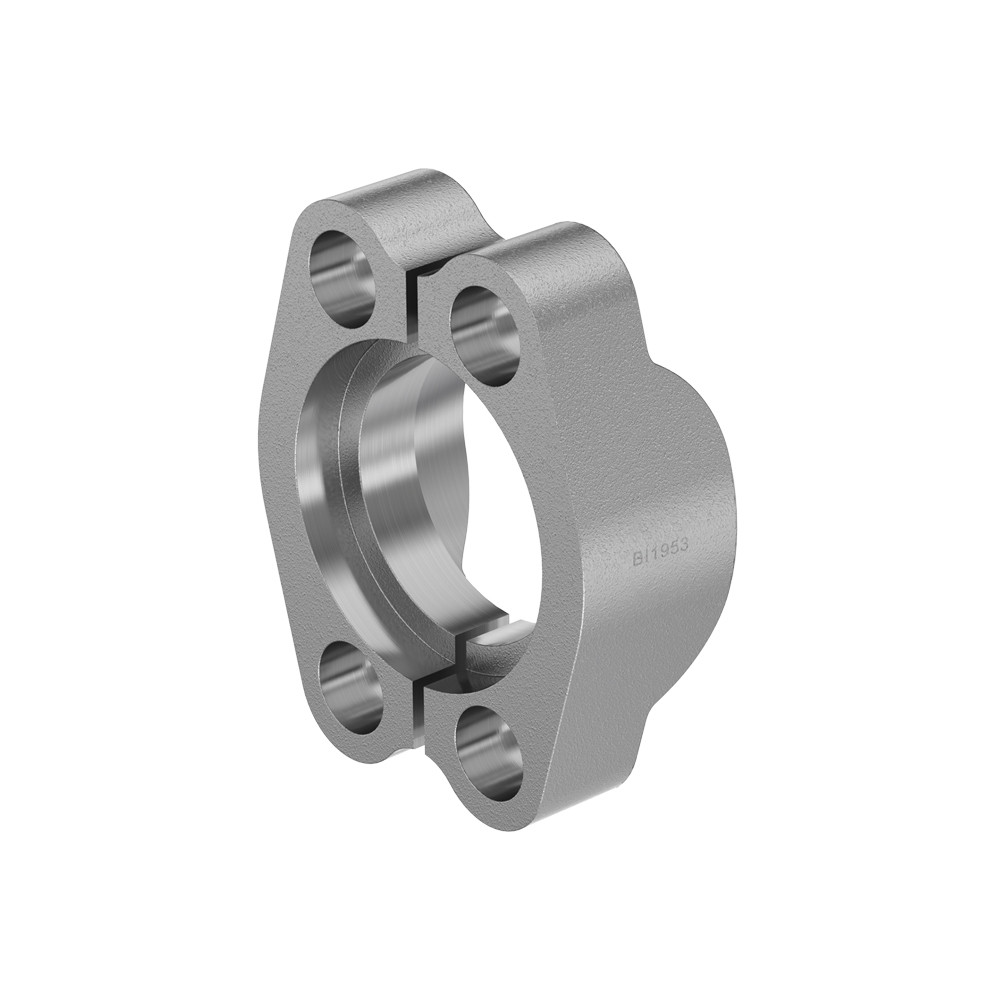

Stainless Steel, SAE J518 Code 61 Split Flange Pair, 2" Flange Size
Specifications
| Connection Details | {"Flange Interface Code":"Code 61","Flange Interface Flange Size":"2\""} |
|---|---|
| Body & Materials | {"Primary Material":"Stainless Steel","Material Grade":"316/316L Stainless Steel","Surface Treatment":"Passivated","Weight":"1.1687 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker Hose Part Number":"51H-32-SS (2PCS)","Parker TFD Part Number":"32FCS1SS (2PCS)"} |
| Series Configuration | Code 61 Split Flange Pair |
| Technical Series Configuration | SAE J518 Code 61 Split Flange Pair |
