Attributes
| Part Number | C6400-32-32-O |
|---|---|
| Is Series Page | 0 |
Description

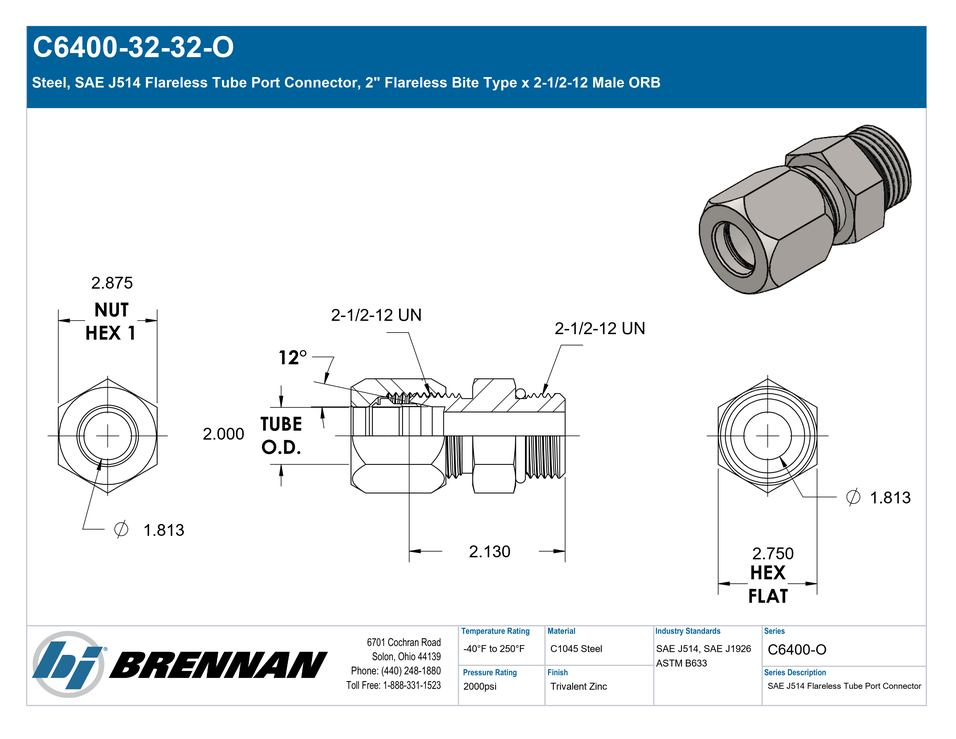

Steel, SAE J514 Flareless Tube Port Connector, 2" Flareless Bite Type x 2-1/2-12 Male ORB
Specifications
| Connection Details | {"Side 1 Connection Type":"Flareless Bite Type","Side 1 Tube OD":"2\"","Side 1 Thread Type":"2-1/2-12 UN","Side 1 Standard":"SAE J514","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"2-1/2-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-32"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"2.57 lb"} |
| Performance Specifications | {"Working Pressure":"2000 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"8000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"7315X32","Parker TFD Part Number":"32 F5BU-S","SAE J514 Part Number":"SAE J514 32-32 08A0120CN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Flareless Compression x Male ORB |
| Technical Series Configuration | SAE J514 Flareless Compression Tube x SAE J1926-3 Male O-Ring Boss Port Connector |
| Side 1 Connection Type | Flareless Bite Type |
| Side 2 Connection Type | Male ORB |
| Shape | Straight |
| Product Type | Fittings |
