Attributes
| Part Number | 1903-61-24 |
|---|---|
| Is Series Page | 0 |
Description

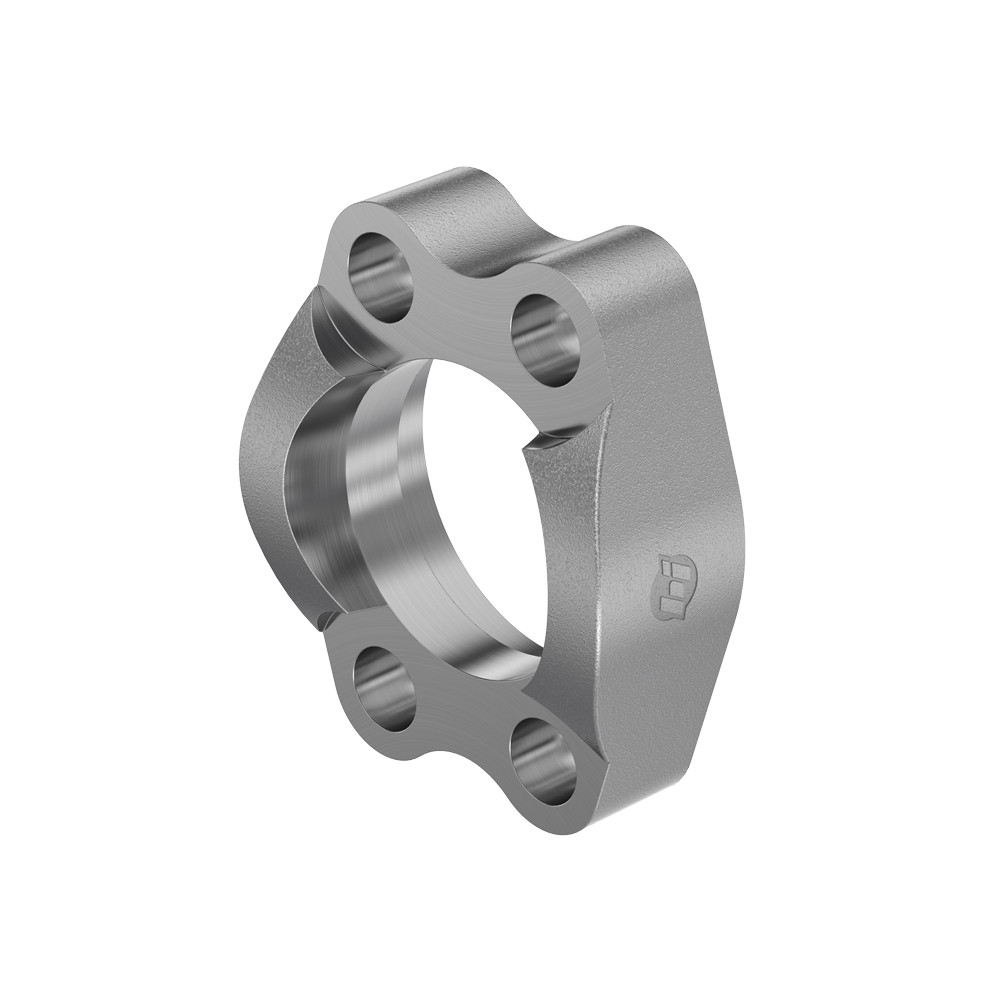

Steel, SAE J518 Code 61 Drilled Captive Flange, 1-1/2" Flange Size
Specifications
| Connection Details | {"Flange Interface Code":"Code 61","Flange Interface Flange Size":"1-1/2\""} |
|---|---|
| Body & Materials | {"Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Weight":"1.086 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"FC3459-24-449","Parker TFD Part Number":"24FCC1SX"} |
| Series Configuration | Code 61 Drilled Captive Flange |
| Technical Series Configuration | SAE J518 Code 61 Drilled Captive Flange |
