Attributes
| Part Number | 7075-16-33 |
|---|---|
| Is Series Page | 0 |
Description

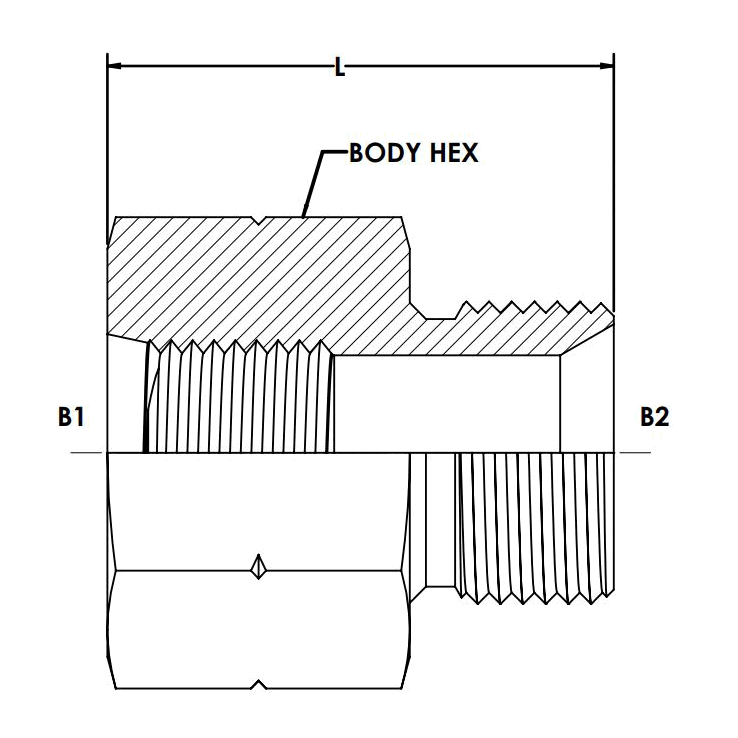

Steel, SAE J1926 O-Ring Boss Rigid Male Metric Port/Line Adapter, 1-5/16-12 Female ORB x M33X2.0 Male Metric 60° Line/Port
Specifications
| Connection Details | {"Side 1 Connection Type":"Female ORB","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J1926","Side 1 Role":"Port Connection","Side 2 Connection Type":"Male Metric 60° Line/Port","Side 2 Thread Type":"M33X2.0","Side 2 Standard":"ISO 9974","Side 2 Role":"Line/Port Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Adapter","Primary Material":"Steel","Material Grade":"12L14/C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"1.750","Weight":"0.23 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker Hose Part Number":"16M33F5OHG8S","Parker TFD Part Number":"16M33F5OHG8S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Female O-Ring Boss x Male Metric |
| Technical Series Configuration | SAE J1926 Female O-Ring Boss Port x ISO 9974 Male Metric Port Adapter |
| Side 1 Connection Type | Female ORB |
| Side 2 Connection Type | Male Metric 60° Line/Port |
| Shape | Straight |
| Product Type | Fittings |
