Attributes
| Part Number | 2408-03-SS |
|---|---|
| Is Series Page | 0 |
Description

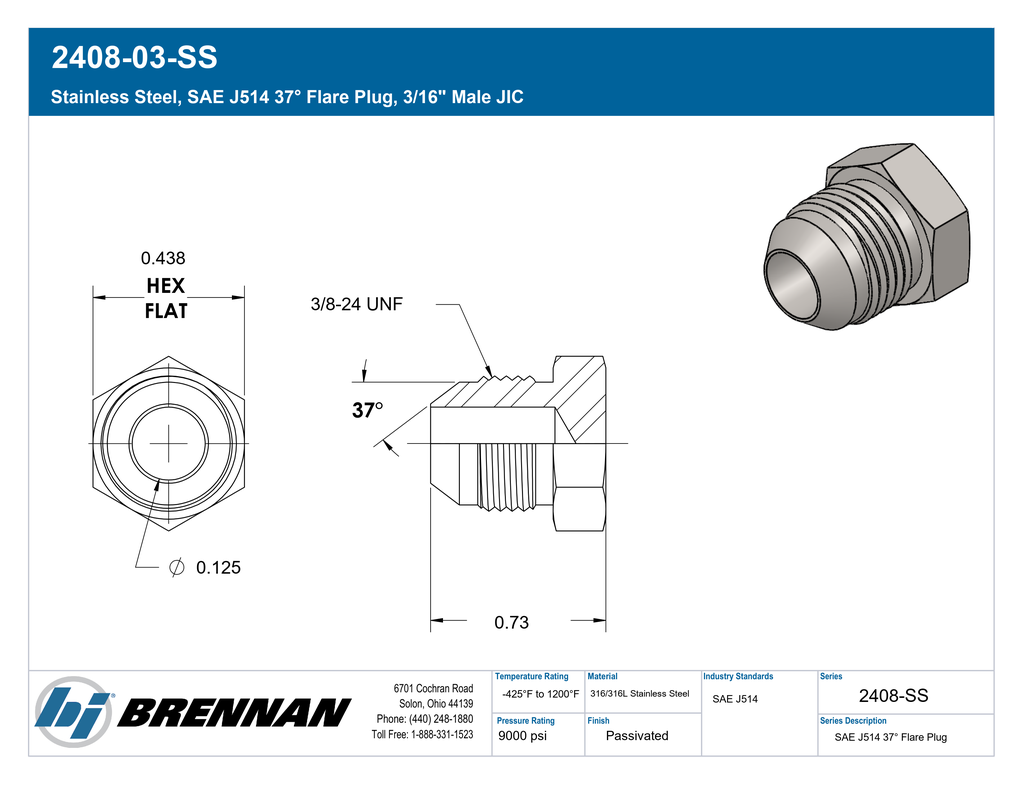

Stainless Steel, SAE J514 37° Flare Plug, 3/16" Male JIC
Specifications
| Connection Details | {"Connection Type":"Male JIC","Tube OD":"3/16\"","Thread Type":"3/8-24 UNF","Standard":"SAE J514 - Class 2A Thread","Connection Standard":"SAE J514 - Class 2A Thread","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Stainless Steel","Material Grade":"316/316L"} |
| Dimensions | {"Weight":"0.02 lb"} |
| Performance Specifications | {"Working Pressure":"9000 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"36000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-900599-3","Parker Hose Part Number":"03CP-3-SS","Parker TFD Part Number":"3 PNTX-SS","SAE J514 Part Number":"SAE J514 3 070109S"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male JIC Plug |
| Technical Series Configuration | SAE J514 Male JIC Tube Plug |
| Side 1 Connection Type | Male JIC |
| Shape | Cap/Plug |
| Product Type | Fittings |
