Attributes
| Part Number | 7699-C-14 |
|---|---|
| Is Series Page | 0 |
Description
Steel, Komatsu Flare Cap, M14X1.5 Female Komatsu
Specifications
| Connection Details | {"Connection Type":"Female Komatsu","Thread Type":"M14X1.5","Standard":"Komatsu Standard","Connection Standard":"Komatsu Standard","Role":"Line Connection","Connection Role":"Line Connection"} |
|---|---|
| Body & Materials | {"Shape":"Cap","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Hex/Wrench":"0.748","Weight":"0.09 lb"} |
| Performance Specifications | {"Working Pressure":"4000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"16000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"4FNMKAS"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Female Komatsu Cap |

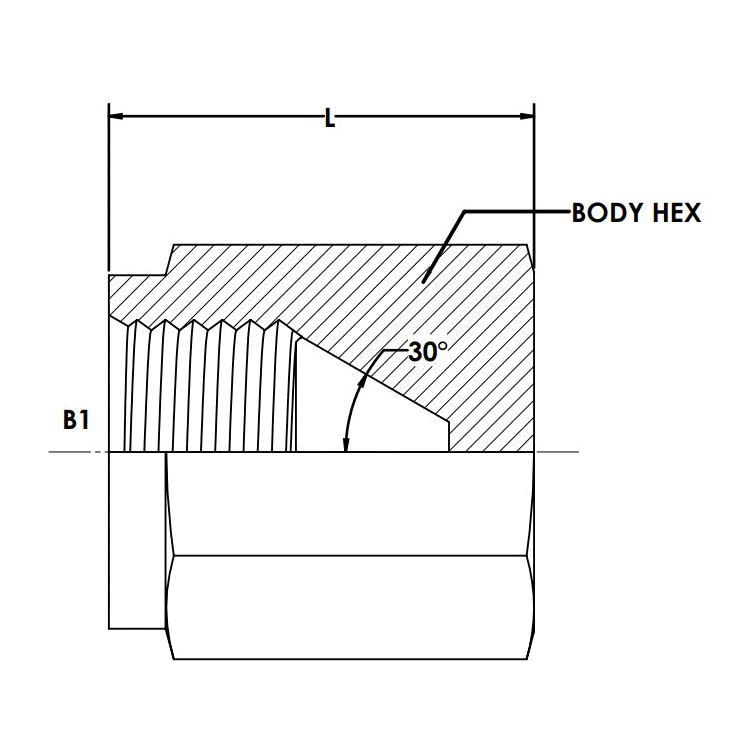

| Technical Series Configuration | Komatsu Standard Female Metric 30° Flared Cap |
| Side 1 Connection Type | Female Komatsu |
| Shape | Cap/Plug |
| Product Type | Fittings |
