Attributes
| Part Number | D2408-E04-X |
|---|---|
| Is Series Page | 0 |
Description

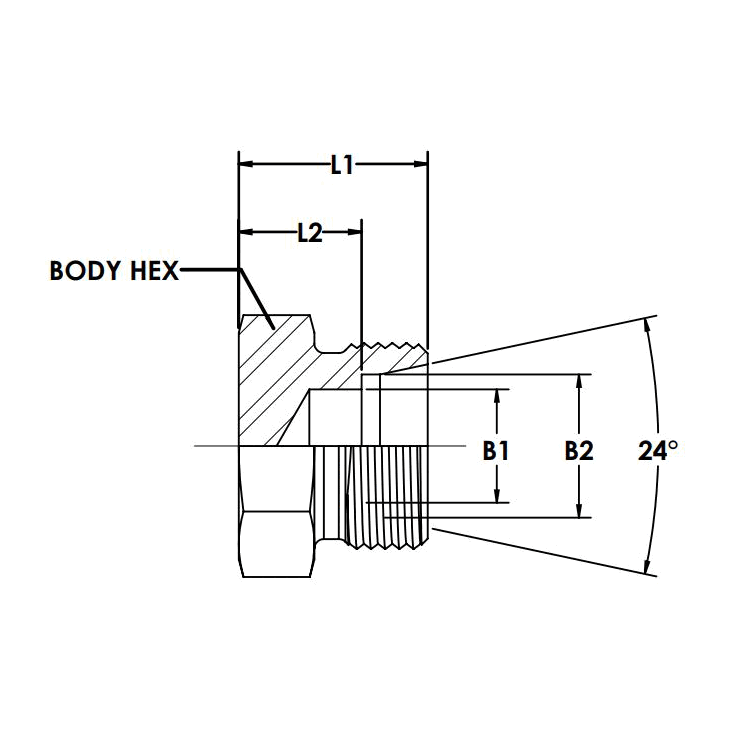

Steel, DIN 2353 Plug, Extra Light 4mm Tube OD, Body Only
Specifications
| Connection Details | {"Connection Type":"Male DIN","Tube OD":"4mm","Standard":"DIN 2353, ISO 8434-1","Connection Standard":"DIN 2353, ISO 8434-1","Role":"Line/Tube Connection","Connection Role":"Line/Tube Connection"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel"} |
| Dimensions | {"Weight":"0.06 lb"} |
| Performance Specifications | {"Working Pressure":"1450 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"5800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"ROV04LLCFX"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | DIN Tube Plug, Body Only |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube Plug, Body Only |
| Side 1 Connection Type | Male DIN |
| Shape | Cap/Plug |
| Product Type | Fittings |
