Attributes
| Part Number | F4003-04 |
|---|---|
| Is Series Page | 0 |
Description

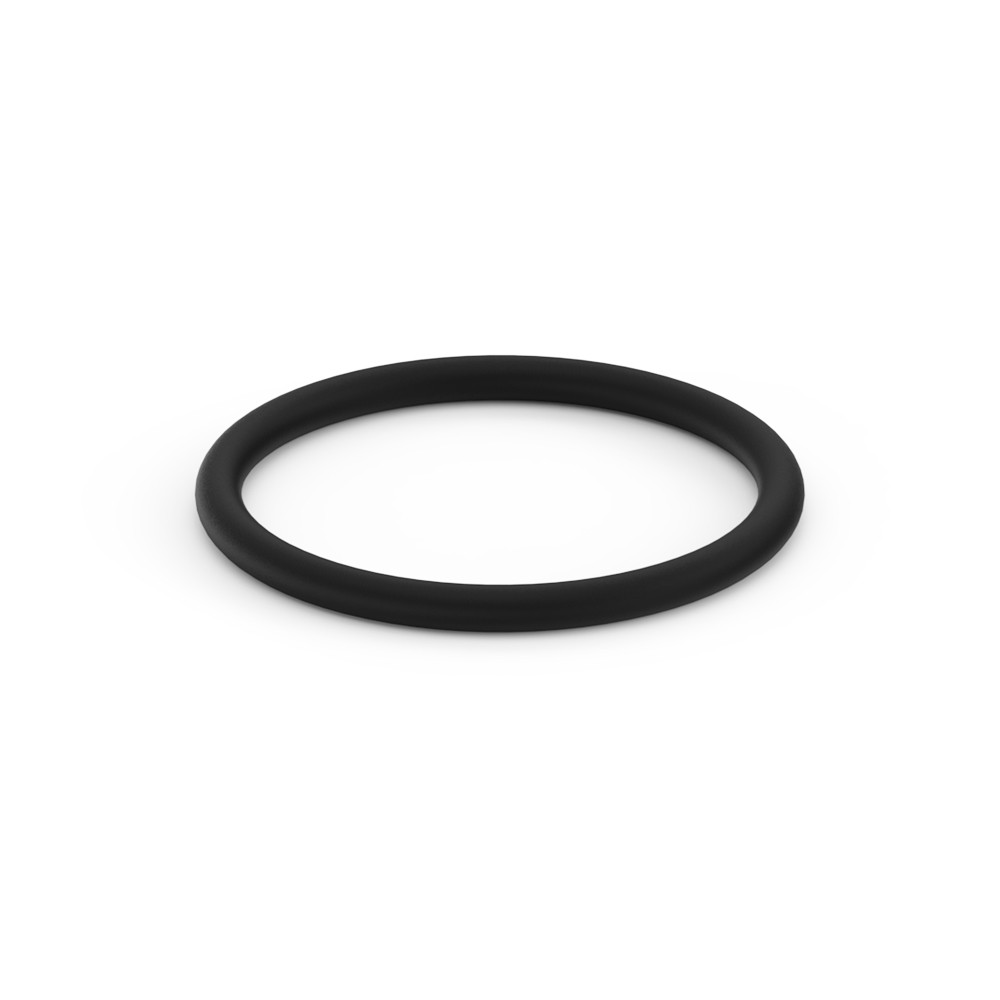

Nitrile, SAE Flare O-Ring Seal for 1/4" Tube OD Flare-O
Specifications
| Specifications | {"Nominal OD":"1/4\"","Exact OD":"0.256\"","Exact ID":"0.176\"","Exact Width":"0.04\"","Color":"Black","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)","Temperature":"-40°F to 250°F","Dash Size":"-04","Seal Hardness":"90 Durometer"} |
|---|---|
| Application & Performance | {"Chemical Resistance":"Petroleum oils, mineral oils, fuels, diesel, gasoline, hydraulic fluids, aliphatic hydrocarbons, water (below 150°F), natural gas, air","Not Recommended For":"Phosphate ester fluids, glycol-based brake fluids, strong acids, ozone, weathering, ketones, esters, chlorinated hydrocarbons"} |
| Cross References | {"Parker TFD Part Number":"5-193 NBR"} |
| Shape | O-Ring |
PDF Documents
No PDF documents.
