Attributes
| Part Number | C2503-16-16-FG |
|---|---|
| Is Series Page | 0 |
Description

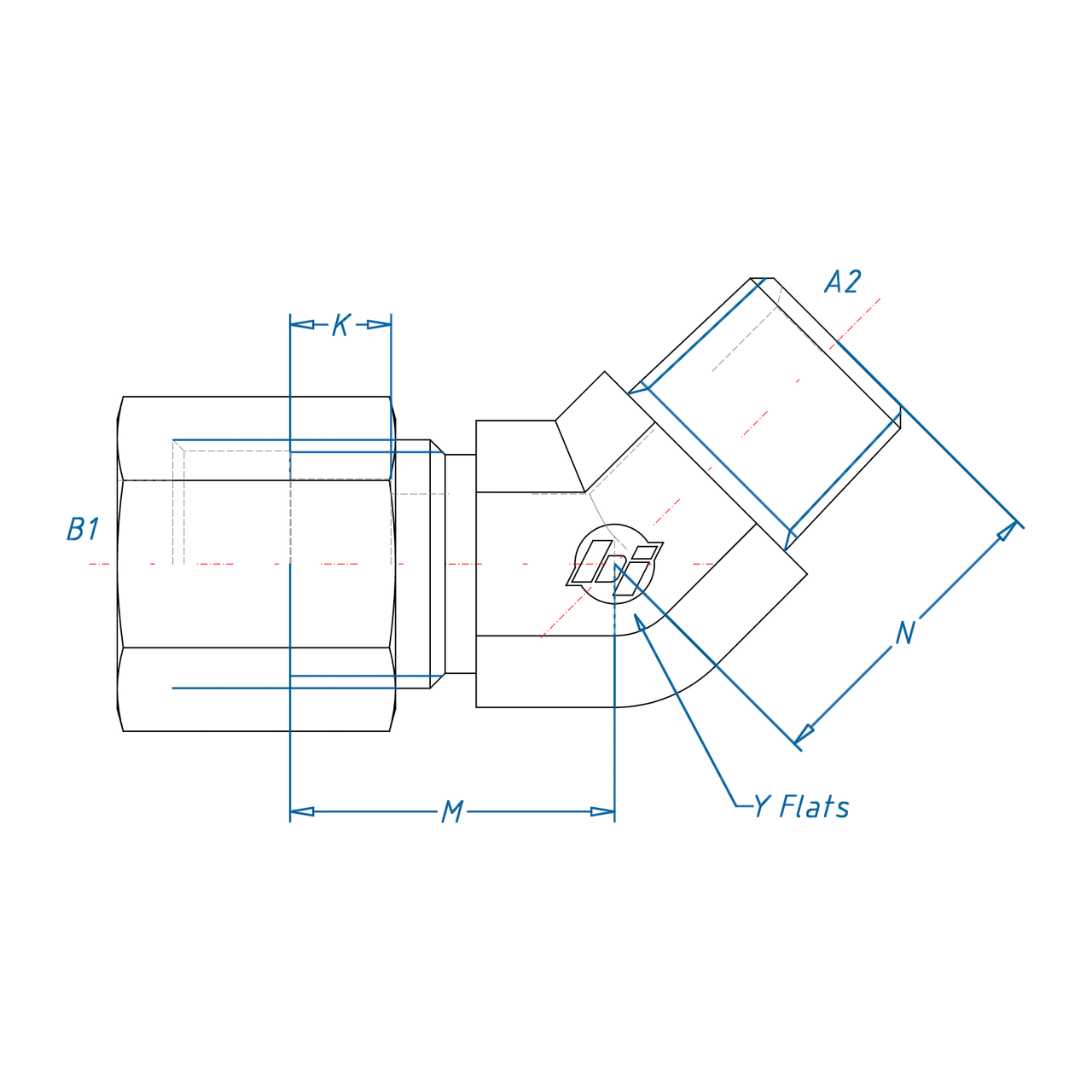

Steel, SAE J514 Flareless Tube 45° Male Elbow, 1" Flareless Bite Type x 1" Male NPTF 30°
Specifications
| Connection Details | {"Side 1 Connection Type":"Flareless Bite Type","Side 1 Tube OD":"1\"","Side 1 Thread Type":"1-5/16-12 UN","Side 1 Standard":"SAE J514","Side 1 Role":"Tube Connection","Side 2 Connection Type":"Male NPTF 30°","Side 2 Pipe Size":"1\"","Side 2 Thread Type":"1-11-1/2 NPTF","Side 2 Standard":"SAE J476","Side 2 Role":"Line/Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"45° Elbow","Shape Type":"Male Elbow","Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc"} |
| Dimensions | {"Weight":"0.73 lb"} |
| Performance Specifications | {"Working Pressure":"3000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"12000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"7355X16","Parker TFD Part Number":"16 VBU-S","SAE J514 Part Number":"SAE J514 16-16 08A0302C"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Flareless Compression x Male Pipe |
| Technical Series Configuration | SAE J514 Flareless Compression Tube x SAE J476 Male NPTF 45° Elbow |
| Side 1 Connection Type | Flareless Bite Type |
| Side 2 Connection Type | Male NPTF 30° |
| Shape | 45° Elbow |
| Product Type | Fittings |
