Attributes
| Part Number | 6408-08-O-SS |
|---|---|
| Is Series Page | 0 |
Description

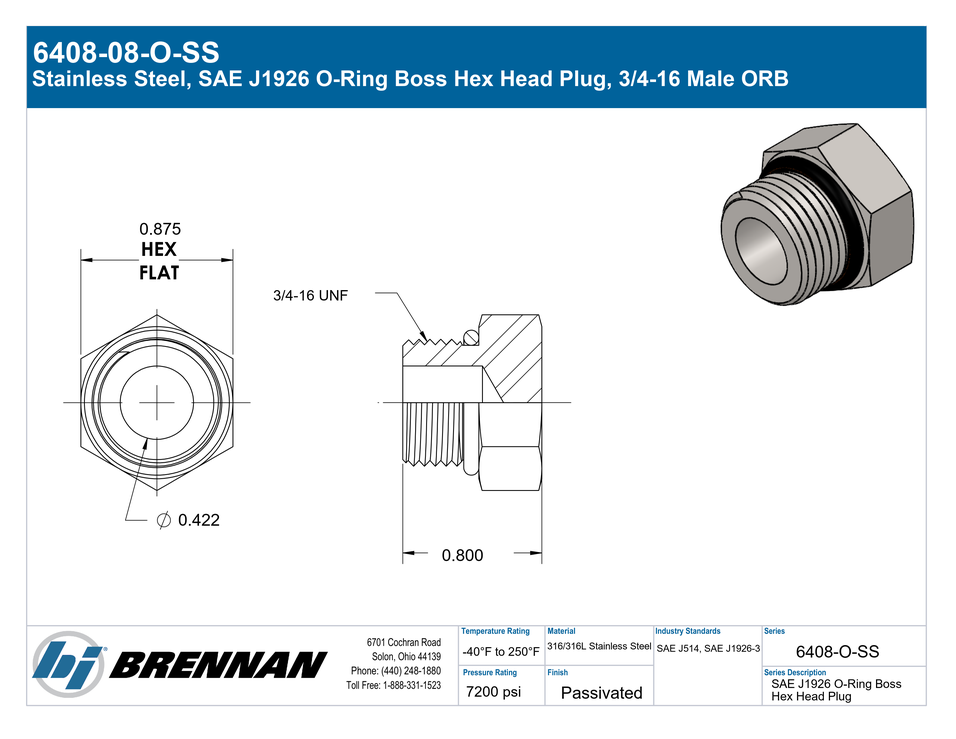

Stainless Steel, SAE J1926 O-Ring Boss Hex Head Plug, 3/4-16 Male ORB
Specifications
| Connection Details | {"Connection Type":"Male ORB","Thread Type":"3/4-16 UNF","Standard":"SAE J1926","Connection Standard":"SAE J1926","Role":"Port Connection","Connection Role":"Port Connection","Replacement Seal":"4000-08"} |
|---|---|
| Body & Materials | {"Shape":"Plug","Shape Type":"Plug","Primary Material":"Stainless Steel","Material Grade":"316/316L","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Weight":"0.10 lb"} |
| Performance Specifications | {"Working Pressure":"7200 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Burst Pressure":"28800 psi","Burst Ratio":"4:1"} |
| Cross References | {"Aeroquip Part Number":"259-900598-8","Parker Hose Part Number":"05CP-8-SS","Parker TFD Part Number":"8 P5ON-SS","SAE J514 Part Number":"SAE J514 8 090109ASN"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | Male ORB Hex Head Plug |
| Technical Series Configuration | SAE J1926-3 Male O-Ring Boss Hex Head Plug |
| Side 1 Connection Type | Male ORB |
| Shape | Cap/Plug |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
