Attributes
| Part Number | D2404-S12-04-SS |
|---|---|
| Is Series Page | 0 |
Description

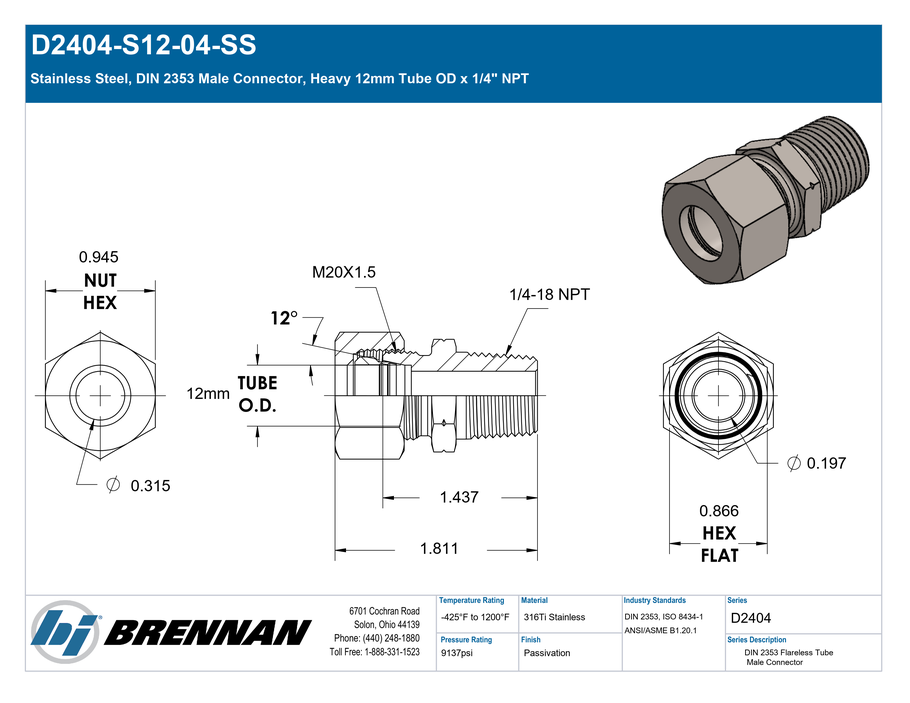

Stainless Steel, DIN 2353 Male Connector, Heavy 12mm Tube OD x 1/4" NPT
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"12mm","Side 1 Thread Type":"M20X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Heavy","Side 2 Connection Type":"Male NPT","Side 2 Pipe Size":"1/4\"","Side 2 Thread Type":"1/4-18 NPT","Side 2 Standard":"ANSI/ASME B1.20.1","Side 2 Role":"Pipe Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Hex/Wrench":"22mm","Weight":"0.23 lb"} |
| Performance Specifications | {"Working Pressure":"9137 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"36548 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GE12S1/4NPT71"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube x Male Pipe |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x ANSI/ASME B1.20.1 Male NPT Connector |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | Male NPT |
| Shape | Straight |
| Product Type | Fittings |
PDF Documents
Specification Sheet
Open PDF
