Attributes
| Part Number | D2425-L18-18-SS |
|---|---|
| Is Series Page | 0 |
Description

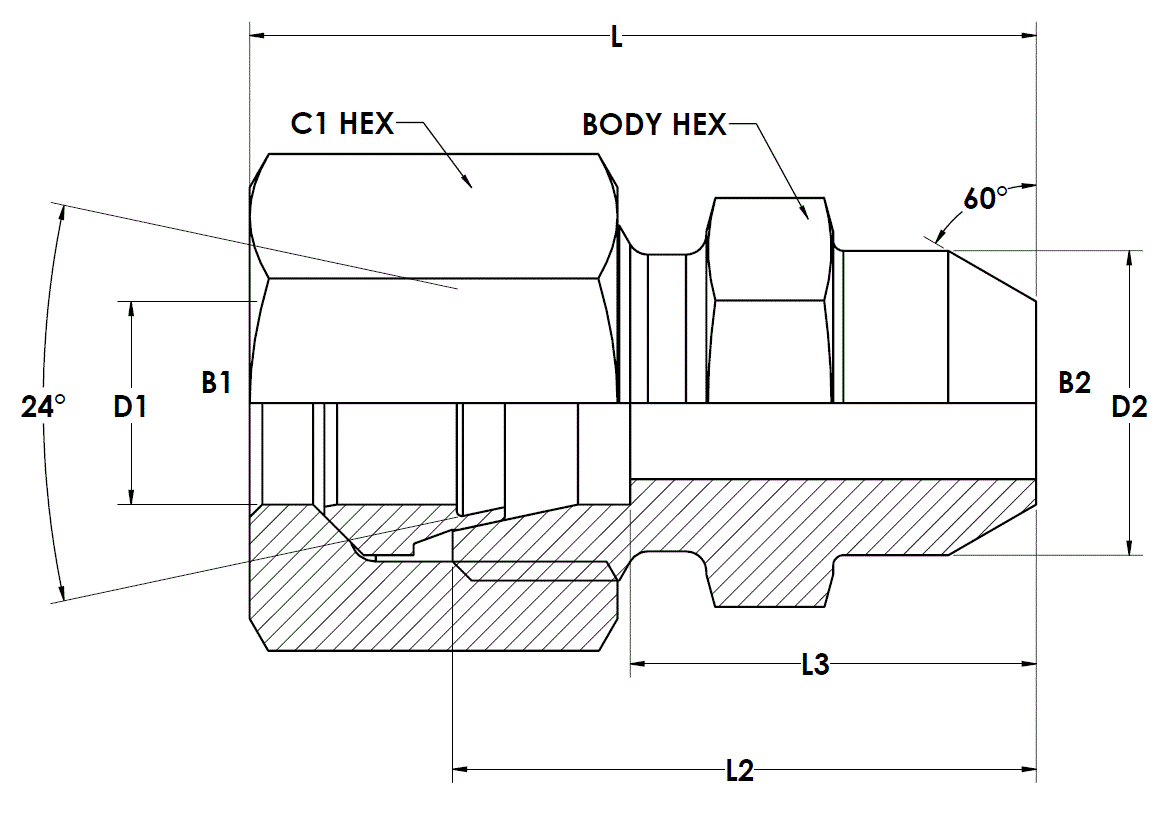

Stainless Steel, DIN 2353 Weld Connector, Light 18mm Tube OD x 18mm Butt Weld
Specifications
| Connection Details | {"Side 1 Connection Type":"DIN Tube","Side 1 Tube OD":"18mm","Side 1 Thread Type":"M26X1.5","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Tube Connection","Side 1 DIN Pressure Series":"Light","Side 2 Connection Type":"Tube Weld","Side 2 Tube OD":"18mm","Side 2 Role":"Weld Connection"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Coupling","Primary Material":"Stainless Steel","Material Grade":"316Ti (1.4571)"} |
| Dimensions | {"Weight":"0.32 lb"} |
| Performance Specifications | {"Working Pressure":"5802 psi","Temperature Range":"-425°F to 1200°F","Burst Pressure":"23208 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"AS18L71"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant","REACH Compliance":"No Substance(s) Present Above Threshold"} |
| Series Configuration | DIN Tube x Buttweld |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x Buttweld Coupling |
| Side 1 Connection Type | DIN Tube |
| Side 2 Connection Type | Tube Weld |
| Shape | Straight |
| Product Type | Fittings |
