Brennan product

4000-05-PC

Scraped SKU: 4000-05-pc Series: SAE J1926 ORB O-Ring Price: 0.15 USD 2026-06-05 05:42:18

Attributes

Part Number4000-05-PC
Is Series Page0

Description

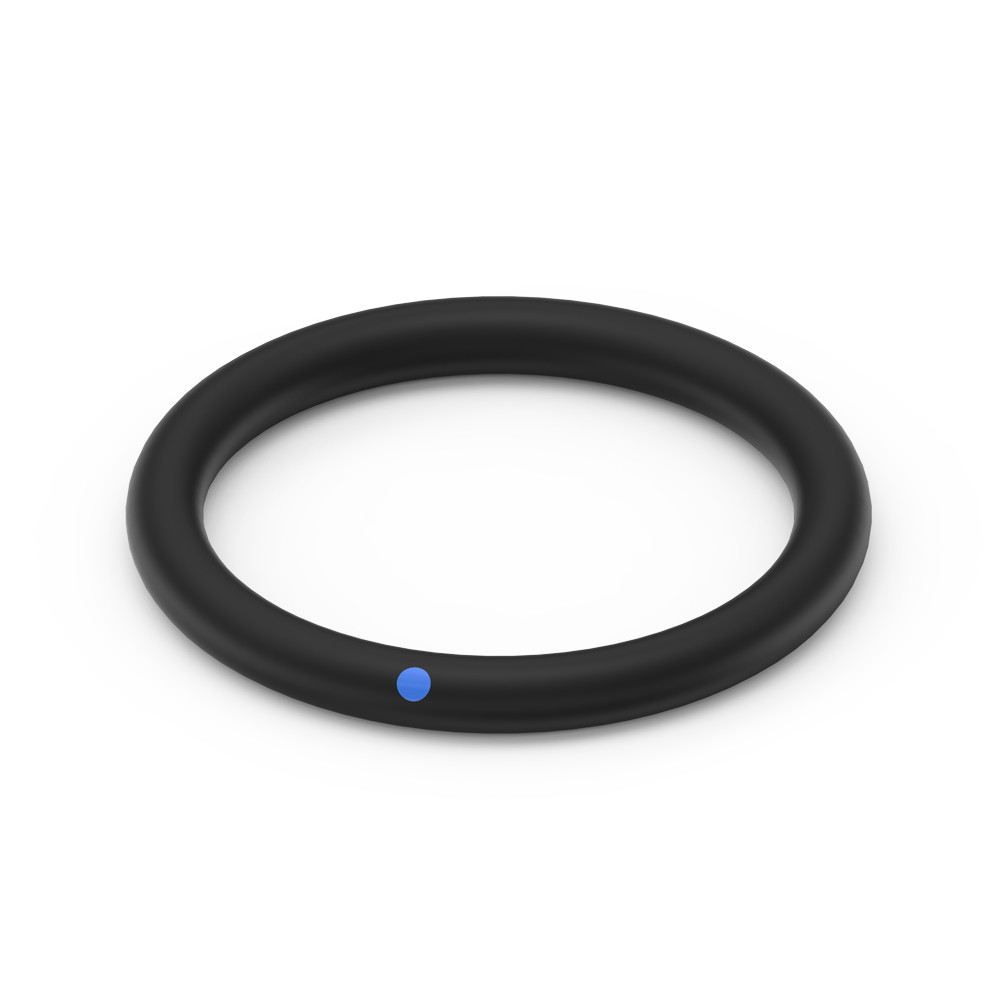

Hydrogenated Nitrile, SAE ORB Seal for Dash Size -05 O-Ring Boss

Specifications

Specifications
{"Nominal OD":"5/16\"","Exact OD":"0.558\"","Exact ID":"0.414\"","Exact Width":"0.072\"","Color":"Black with blue dot","Seal Code":"HNBR","Seal Material":"Hydrogenated Nitrile","Temperature":"-40°F to 250°F","Dash Number":"-905","Dash Size":"-05","Seal Hardness":"90 Durometer"}
Application & Performance
{"Chemical Resistance":"Petroleum oils, mineral oils, fuels, diesel, gasoline, hydraulic fluids, water (moderate temperatures), ozone, weathering, sour gas, amines","Not Recommended For":"Phosphate ester fluids, strong acids, chlorinated hydrocarbons, ketones, esters, high concentrations of aromatic hydrocarbons"}
ShapeO-Ring

PDF Documents

No PDF documents.
