Attributes
| Part Number | 1904-62-32 |
|---|---|
| Is Series Page | 0 |
Description

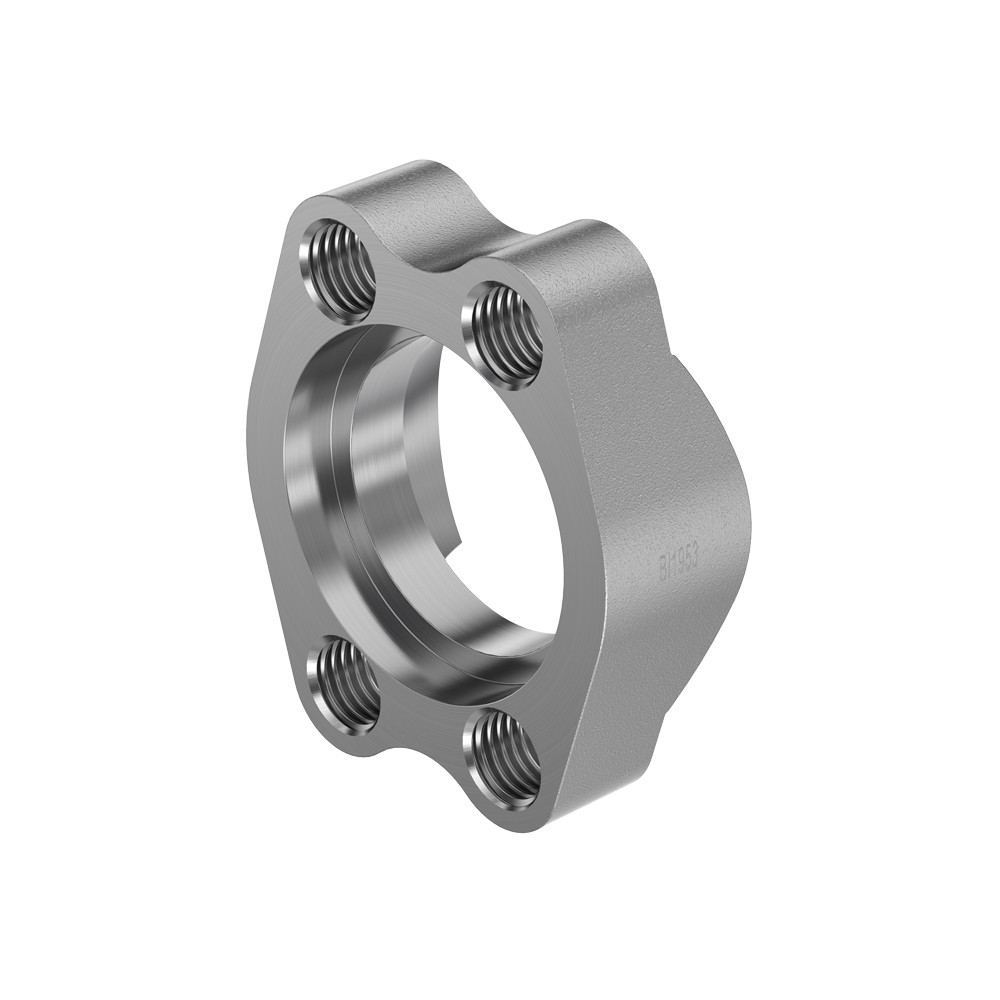

Steel, SAE J518 Code 62 Threaded Captive Flange, 2" Flange Size
Specifications
| Connection Details | {"Flange Interface Code":"Code 62","Flange Interface Flange Size":"2\""} |
|---|---|
| Body & Materials | {"Primary Material":"Steel","Material Grade":"C1045","Plating":"Trivalent Zinc","Weight":"4.93 lb"} |
| Performance Specifications | {"Working Pressure":"6000 psi","Temperature Range":"-65°F to 500°F","Corrosion Resistance":"120 hrs no white rust; 240 hrs no red rust per ASTM B117","Burst Pressure":"24000 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"32FCCT2SX"} |
| Series Configuration | Code 62 Threaded Captive Flange |
| Technical Series Configuration | SAE J518 Code 62 Threaded Captive Flange |
