Attributes
| Part Number | D6400-L22-16-O-X |
|---|---|
| Is Series Page | 0 |
Description

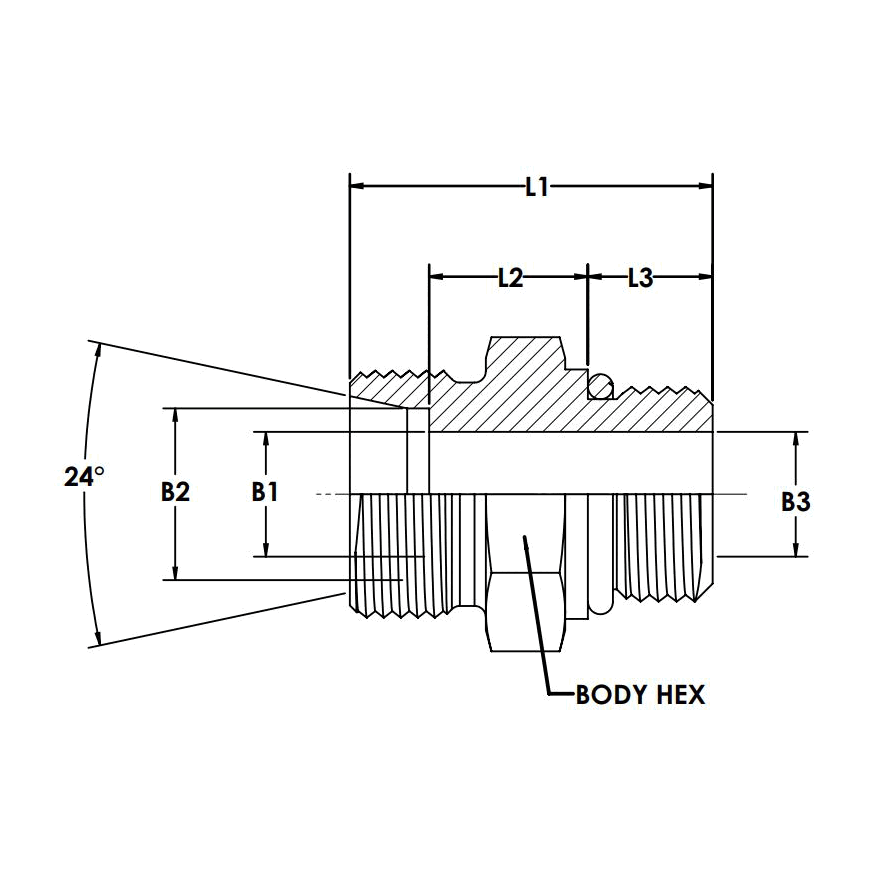

Steel, DIN 2353 Male Connector, Light 22mm Male DIN x 1" SAE ORB, Body Only
Specifications
| Connection Details | {"Side 1 Connection Type":"Male DIN","Side 1 Tube OD":"22mm","Side 1 Thread Type":"M30X2.0","Side 1 Standard":"DIN 2353, ISO 8434-1","Side 1 Role":"Line/Tube Connection","Side 1 DIN Pressure Series":"Light","Side 2 Connection Type":"Male ORB","Side 2 Thread Type":"1-5/16-12 UN","Side 2 Standard":"SAE J1926","Side 2 Role":"Port Connection","Side 2 Replacement Seal":"4000-16"} |
|---|---|
| Body & Materials | {"Shape":"Straight","Shape Type":"Male Connector","Primary Material":"Steel","Material Grade":"11SMnPb30","Plating":"Zinc Nickel","Seal Code":"NBR","Seal Material":"Buna-N (Nitrile)"} |
| Dimensions | {"Hex/Wrench":"41mm","Weight":"0.40 lb"} |
| Performance Specifications | {"Working Pressure":"3626 psi","Temperature Range":"-40°F to 250°F","Temperature Notes":"Temperature limited by NBR Seal","Corrosion Resistance":"1,000 hrs no red rust per DIN ISO 9227","Burst Pressure":"14504 psi","Burst Ratio":"4:1"} |
| Cross References | {"Parker TFD Part Number":"GE22L15/16UNOMDCF"} |
| Regulatory & Compliance | {"RoHS Compliance":"Compliant by Exemption 6a-I (Lead in steel alloy)","REACH Compliance":"May contain Lead ≥0.1%"} |
| Series Configuration | Male DIN x Male ORB, Body Only |
| Technical Series Configuration | DIN 2353/ISO 8434-1 Flareless Tube x SAE J1926-3 Male O-Ring Boss Port Connector, Body Only |
| Side 1 Connection Type | Male DIN |
| Side 2 Connection Type | Male ORB |
| Shape | Straight |
| Product Type | Fittings |
